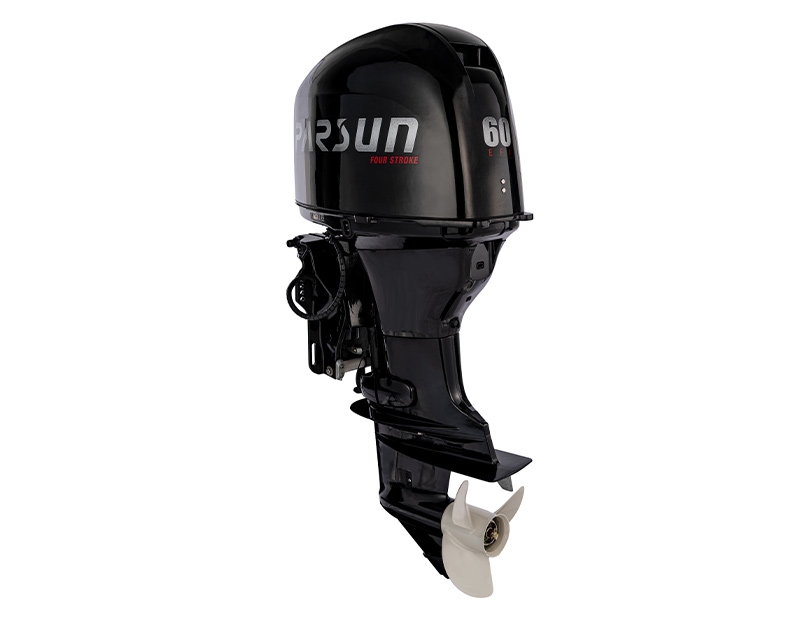

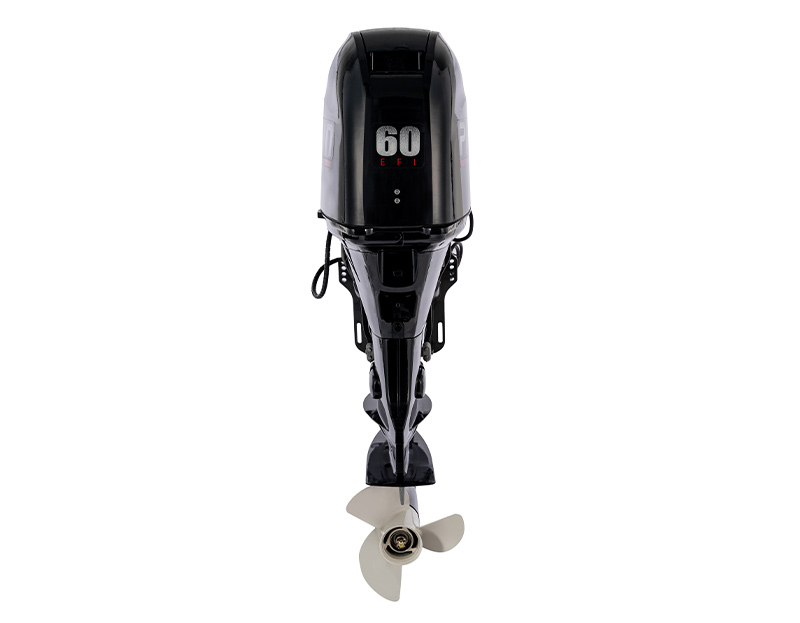

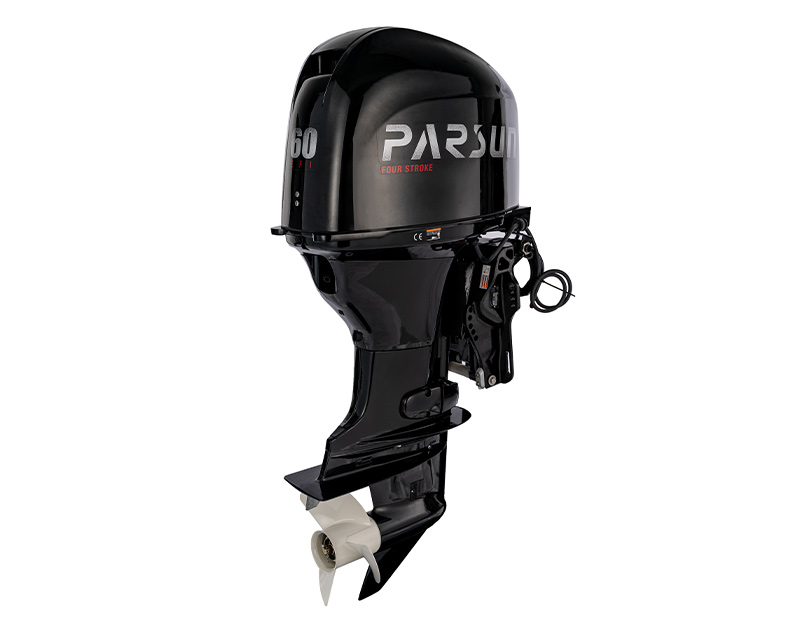

F60 EFI Outboard Motor

F60 is a 60HP midrange 4-stroke outboard motor, equipped with electronic fuel injection, which can provide excellent fuel economy, easy start, slower trolling speed, quick throttle response, lower emission and very smooth rides on the water. The multi-fuction tiller handle allows you to access to an easy operatiion. It is powerful enough to take you around.

Category: 4-Stroke Outboards

Previous Product Next Product

FEATURES

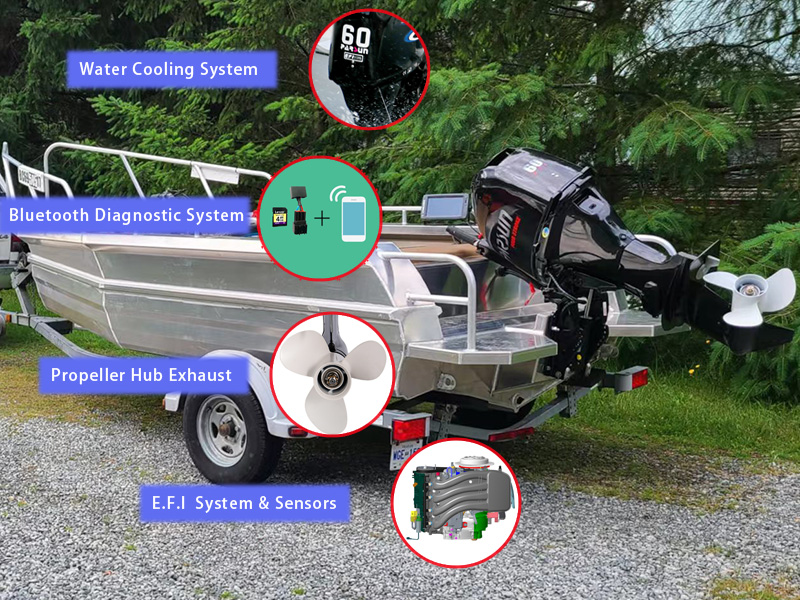

● Fuel-water separator and fuel filter prevent any debris or water in the fuel from getting into the engine.
● Built-in freshwater flushing system provides easy routine flushing.
● High output 18 amp alternator for battery charging and fishing electronics.
● Multi point electronic fuel injection with ECM control delivers the precise fuel / air mixture for optimum combustion and provides smooth running.
● Warning & protection: Several different sensors continually monitor the critical engine's major functions. They will send out special signals to inform you in advance, such as over-revving, overheating, start-in-gear protection for safe engine starting, safety lanyard or low oil pressure, and automatically reduce the engine power to prevent damage.
1. Equipped with a reliable Delphi E.F.I. system and multifunction diagnostic scanner (scanner available as option), the outboard motor ensures high quality, long life and easily maintenance, while reducing your fuel and maintenance costs.
2. Through propeller hub exhaust and long shaft provides a smooth quiet operation.
3. Long-term durability of critical engine components: water cooling fuel system, stainless steel water pump housing liner and camshaft-driven engine oil pump ensure the outstanding durability.
4.Large displacement and single overhead cam increase the low-end power with smooth and strong performance, and help the operator get excellent acceleration even when pushing a heavy load.

SPECIFICATIONS

Model	F60
Specs Options	F60BEL-D/F60BEL-T/F60FEL-T/F60BEL-CT/F60FEL-CT
Transom Height	20/22in.
Weight	113-114.5Kg
Full Throttle Operating Range	5000～6000r/min
Maximum Putput	44.1kW（60HP）@5500r/min
Idling Speed	850～900 r/min
Engine Type	SOHC
Cylinders	4
Displacement	996 cc
Bore*Stroke	65.0×75.0 mm
Ignition System	CDI
Control System	Tiller / Remote
Start System	Electric start
Gear Positions	F-N-R
Gear Ratio	1.85
Trim And Tilt System	Gas Assist/Electric
Fuel Tank Capacity	24L
Max. Fuel Consumption	18.5L/h
Engine Oil Capacity	2.5L
Gear Oil Capacity	430cc
Propeller Potions	3-12"in or 3-13"in
Specs Options description: 1. The propeller shall be selected according to the size and purpose of the boat; 2. F in front of 40 means "four-stroke". B=Back control ( Tiller ) F=Front control E= Electric start L= Long shift

Our F60 outboard motors are perfect power device for aluminum fishing boats, bay boats, inflatable boats, pontoon boats and fishing boats. They are designed to satisfy the demand of both leisure boats and work boats. Parsun 60HP EFI outboard motors are powerful, reliable and easy to operate.

GALLERY
