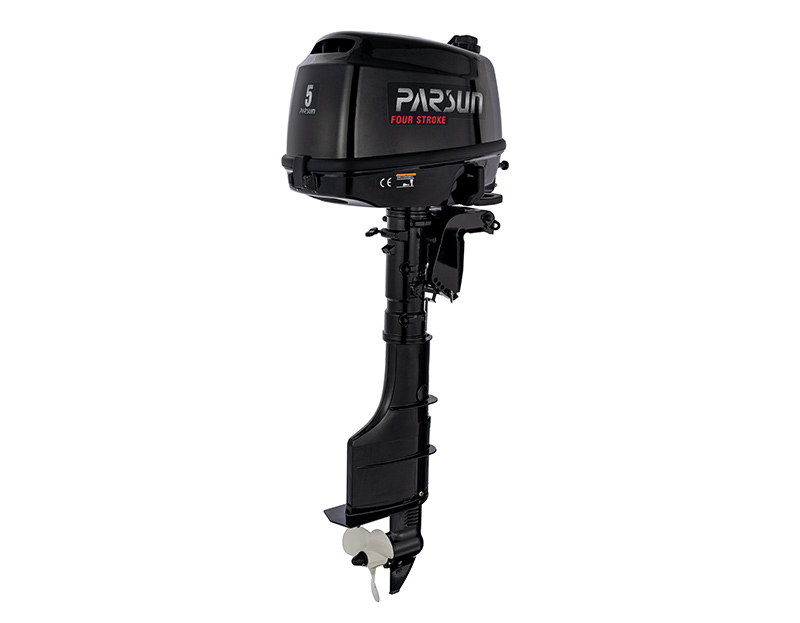

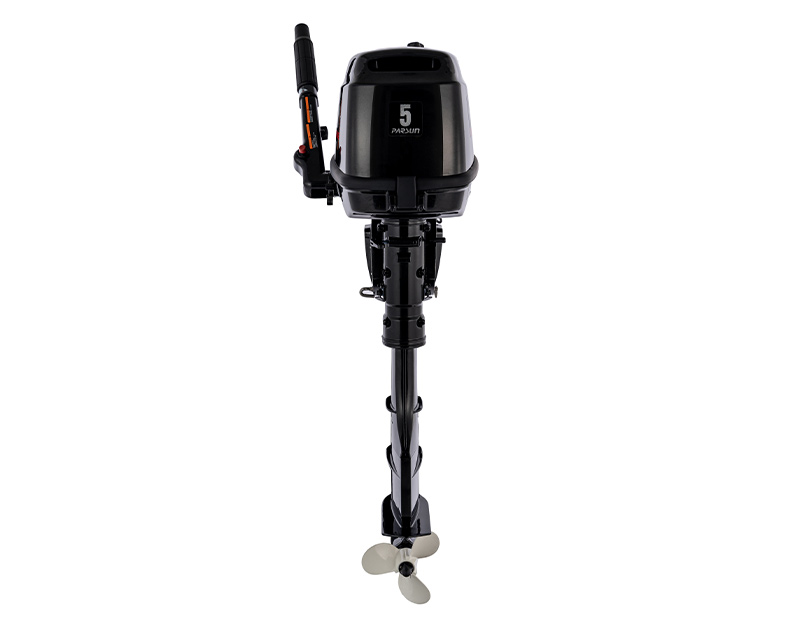

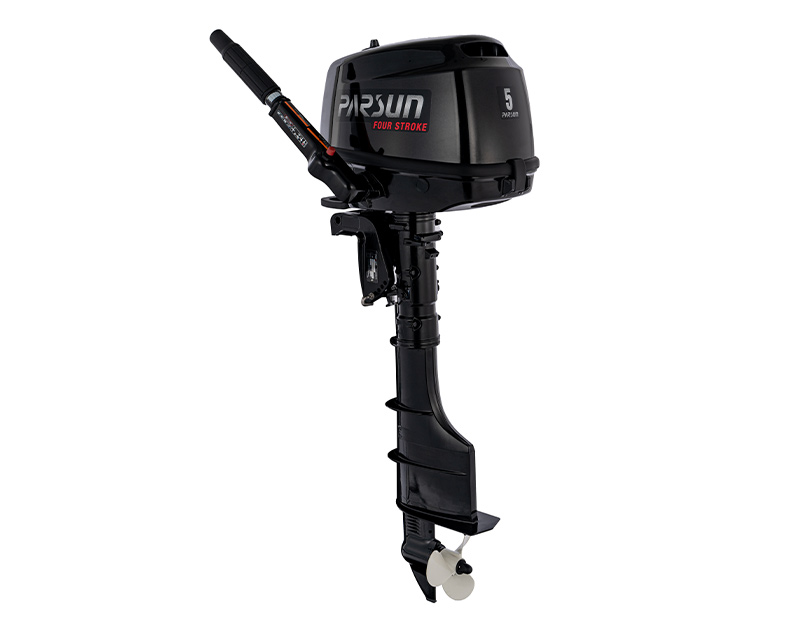

F5 Outboard Motor

F5 is designed as a small power 4-stroke outboard motor, suitable for personal leisure and entertainment, and used to boats, rubber boats within 5 meters. F5 and F4 come from the same development plateform, so they can share most parts. Their light weights, combined with built-in carrying handles and an oil-leak prevention system for on-side storage capability create true portability. Add to that their efficiency, performance and reliability and these pint-sized powerhouses are perfect for all sorts of light duty.

Category: 4-Stroke Outboards

Previous Product Next Product

FEATURES

High Lights

1. Exhaust through the middle of propeller so as to get low noise and low vibration for extra comfort;
2. Using imported key parts, the engine has better performance and longer service life.
3. Besides the oil dip-stick, also equipped with oil watch window.
4. Convenient auxiliary prime pump in cowling for easy starting after long storage.
5. CDI Ignition for easy start in all conditions: idle speed will be down to 1200~1300rpm (the fuel consumption will be reduced) and more quiet at idle speed by such new system.

SPECIFICATIONS

Model	F5
Specs Option	F5BMS/F5BML
Transom Height	15in. or 20in.
Weight	24.5Kg/25.5kg
Full Throttle Operating Range	4000～5000r/min
Maximum Output Power	3.6kW（5HP）@5000r/min
Idling Speed Range	1500～1600 r/min
Engine Type	OHV
Displacement	112 cc
Bore*Stroke	59.0×41.5 mm
Ignition System	TCI
Steering System	Tiller
Start System	Manual start
Gear Positions	F-N-R
Gear Ratio	2.08
Trim and Tilt System	Manual
Fuel Tank Capacity	Built-in 1.3L
Max. Fuel Consumption	2.0L/h
Engine Oil Capacity	0.5L
Gear Oil Capacity	100cc
Propeller Potions	3-7"in.
