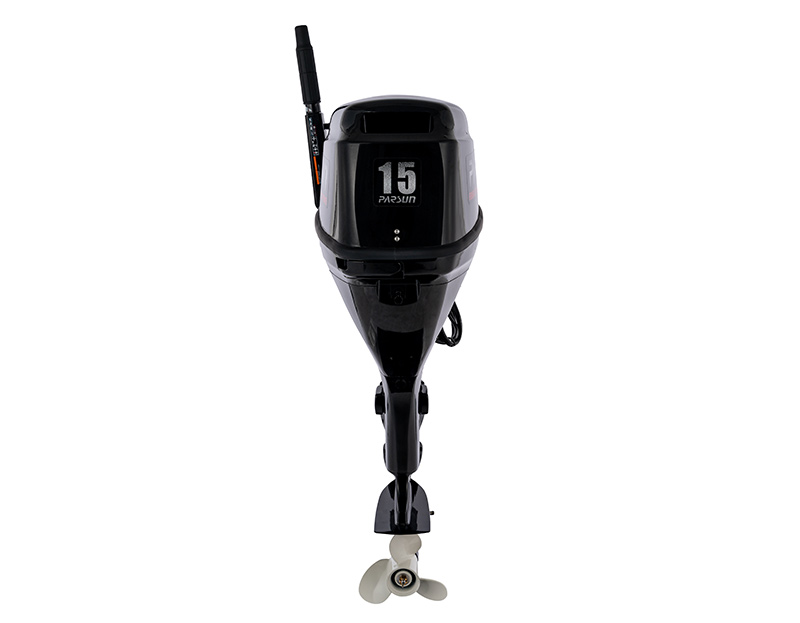

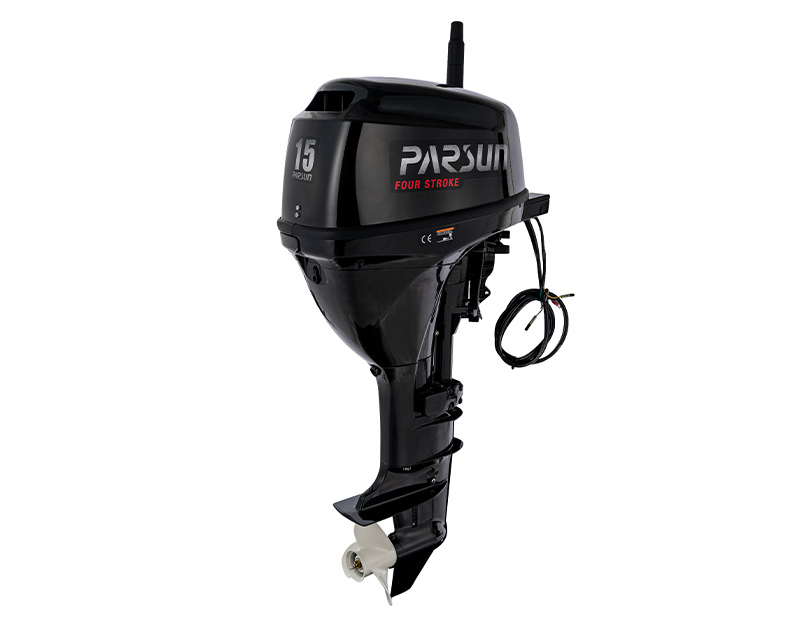

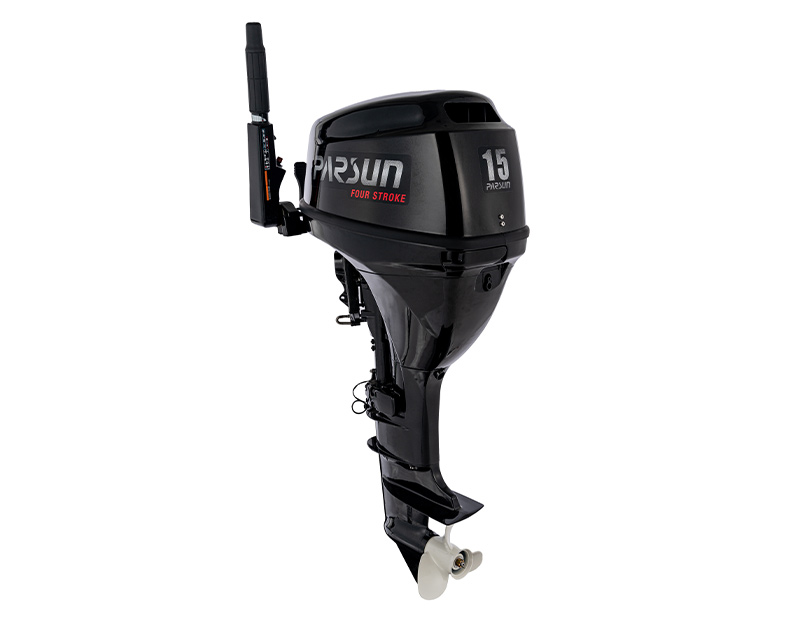

F15 Outboard Motor

F15 is a 15hp 4-stroke portable outboard motor with great market feedback. F15 is applicable to a larger range of personal recreation, firefighting, disaster relief, commercial, etc. Although it's a small outboard motor, but it is powerful enough to take few people around.

Category: 4-Stroke Outboards

Previous Product Next Product

Features

Portable & Environment-friendly & Powerful & Efficient

1. Less emission, CE and EPA approved.
2. External large capacity fuel tank, support longer sailing time.
3. Overall length is within 1 meter, small enough to transport and pack.
4. Engine upgrade, greater load capacity, faster sailing speed, better power experience.
5. F9.9 has good acceleration performance and fuel economy through engine optimization measures.
6. Electric starting, eliminating the tedium of pulling.

Sepecification

Model	F15
Specs Option	F15BMS/F15BML/F15BWS/F15BWL/F15FWS/F15FWL
Transom Height	15/ 20in.
Weight	49-53Kg
Full Rpm Range	4500～5500r/min
Max. Output Power	11kW（15HP）@5000r/min
Idling Rpm Range	900～1000 r/min
Engine Type	L2, SOHC
Displacement	323 cc
Bore * Stroke	59.0×59.0 mm
Ignition System	CDI
Fuel Induction System	Carburetor
Steering System	Tiller/Remote control
Starting System	Manual
Gear Shift	Forward-Neutral-Reverse
Gear Ratio	2.08
Trim & Tilt System	Manual
Fuel Tank Capacity	24L
Max. Fuel Consumption	5.3L/h
Engine Oil Capacity	1.0L
Gear Oil Capacity	250cc
Propeller Options	3-8"or 3-10"or 3-11" or 3-12"

Model description:

B=Back control (tiller handle) F= front control (remote control) M= Manual start, W= Manual start and Electric start as option, S= Short shaft, L= long shaft

The propeller shall be selected according to the size and application of the boat.

DOWNLOAD

F15 outboard motor owner manual
