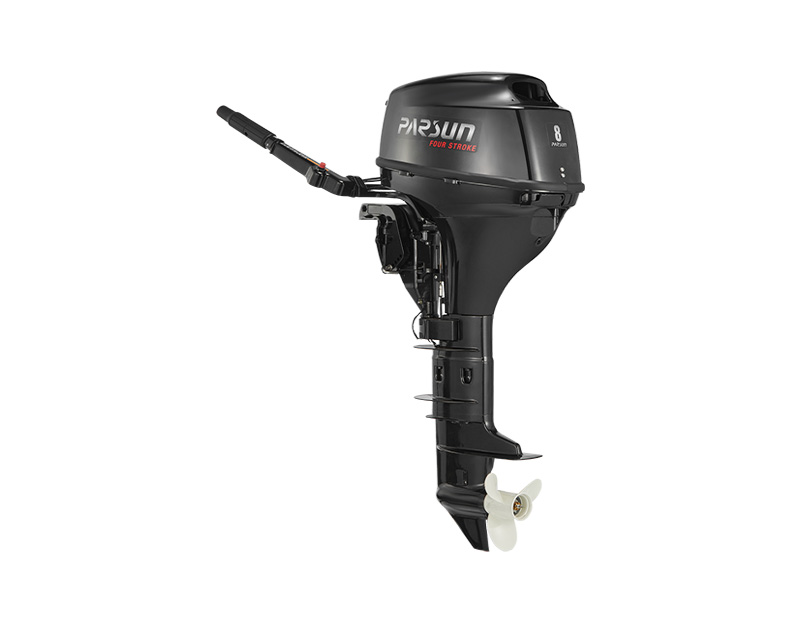

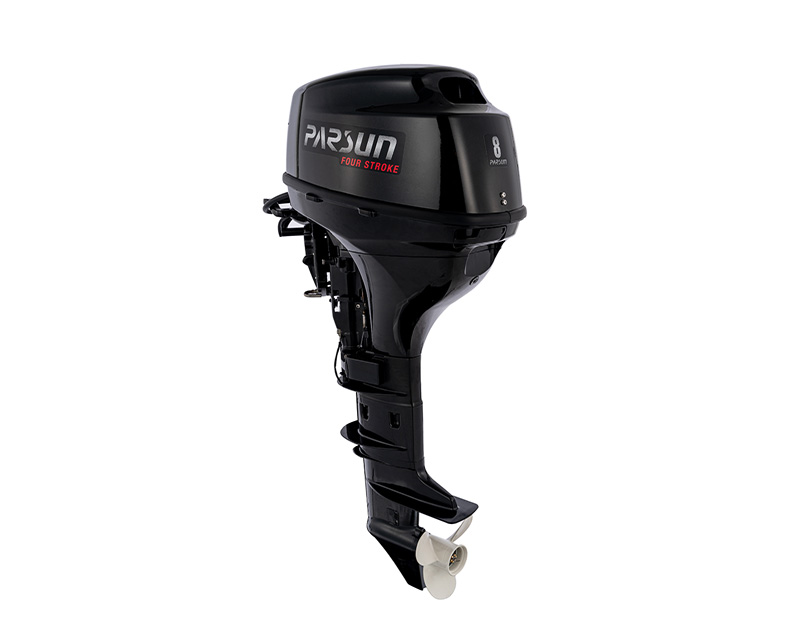

F8 Outboard Motor

F8 is a small outboard motor, developed and produced for personal and family water leisure and entertainment, which suitable for small boats such as rubber boats and fishing boats. The F8 is smallest portable outboard motor from Parsun with electric start and forward operation.

Category: 4-Stroke Outboards

Previous Product Next Product

FEATURES

Product Advantages

1. Less emission, more environmental protection, the EU CE and the United States EPA approved.
2. Large capacity fuel tank, support longer sailing time.
3. Adopt CDI ignition system, easy to start.
4. Reliable quality produced by professional chemical factory.
5. SOHC engine intake structure, more torque at low speed brings more explosive power and load capacity.
6. Oil pre-setting, easy to operate the outboard engine.
7. Engine camshaft directly drives the valve, reducing the connecting rod structure, easy after-sales maintenance.

SPECIFICATIONS

Model	F8
Specs Option	F8BMS/F8BML/F8BWS/F8BWL/F8FWS/F8FWL
Transom Height	15in. / 20in.
Weight	38-43Kg
Max. Rpm Range	5000～6000r/min
Maximum Output Power	5.9kW（8HP）@5000r/min
Idling Rpm Range	900～1000 r/min
Engine Type	2-cyl. SOHC
Displacement	209 cc
Bore*Stroke	55.0×44.0 mm
Ignition System	CDI
Fuel Induction System	Carburetor
Steering System	Tiller / Remote control
Start System	Manual start / Electric start
Gear Positions	F-N-R
Gear Ratio	2.08
Trim & Tilt System	Manual
Fuel Tank Capacity	12L (External)
Max. Fuel Consumption	2.8L/h
Engine Oil Capacity	0.8L
Gear Oil Capacity	320cc
Propeller Potions	3-8"in

DOWNLOAD

F8 outboard motor owner manual
