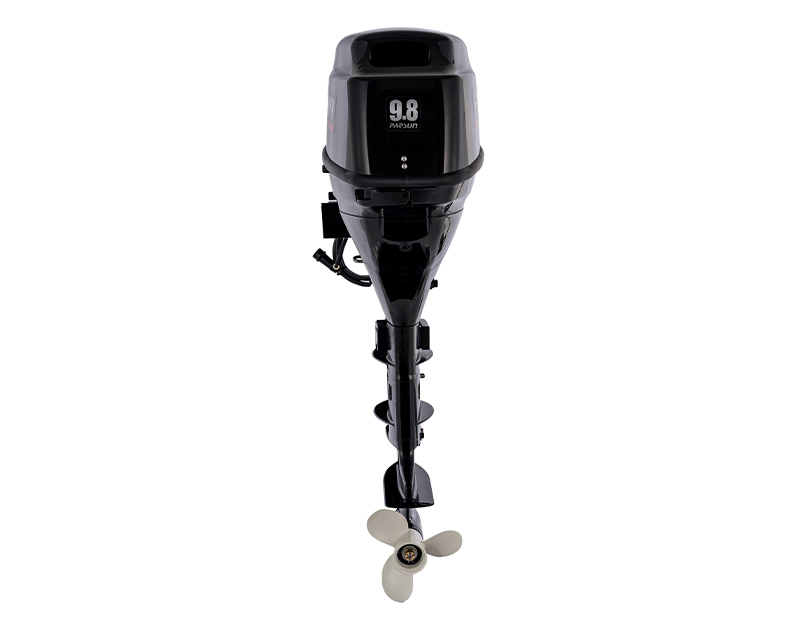

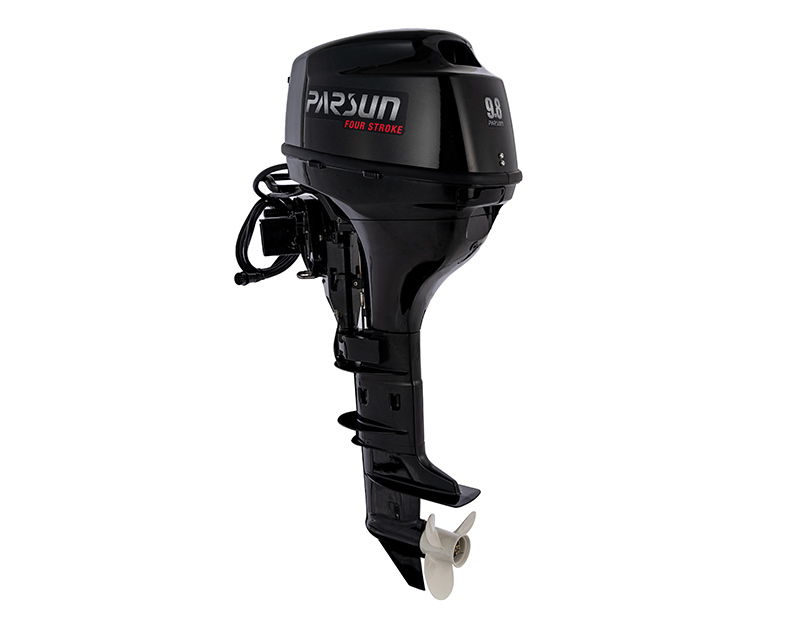

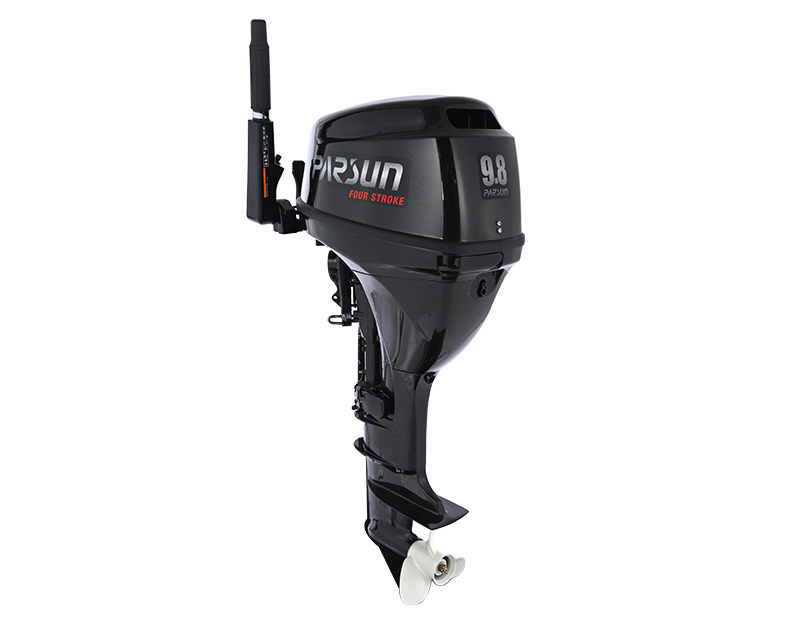

F9.8 Outboard Motor

F9.8 is a small outboard motor that designed for personal and family water recreation. It can be used for rubber boats, fishing boats and other small boats. The boat matched with F9.8 outboard motor is powerful enough to take several people to go fishing. With forward-mounted controls and optional power tilt, they make operation easy—perfect for spending a full day fishing the lake or skimming the marsh with your decoys.

Category: 4-Stroke Outboards

Previous Product Next Product

FEATURES

Portabl & Powerful & Efficient

1. Less emission, more environmental protection, the CE and EPA approved;
2. External large capacity fuel tank, support longer sailing time;
3. Adopt CD ignition system, easy to start;
4. Reliable quality produced by professional factory;
5. SOHC engine intake structure, more torque at low speed brings more explosive power and load capacity;
6. Fillling engine oil sparately, easy to operate ;
7. Electric starting as option, eliminating the tedium of pulling;

SPECIFICATIONS

Models	F9.8
Specs Option	F9.8BMS/F9.8BML/F9.8BWS/F9.8BWL/F9.8FWS/F9.8FWL
Transom Height	15/ 20in.
Dry Weight	38-41.5kg
Full Rpm Range	5000～6000r/min
Max. Output Power	7.2kW（9.8HP）
Idling Rpm Range	900～1000 r/min
Engine Type	2-cyl. SOHC
Displacement	209 cc
Bore x Stroke	55.0×44.0 mm
Ignition System	CDI
Fuel Induction System	Carburetor
Steering System	Tiller/Remote
Starting System	Manual/Electric
Gear Shift	F-N-R
Gear Ratio	2.08
Trim & Tilt System	Manual
Fuel Tank Capacity	External 12L
Max. Fuel Consumption	3.4L/h
Engine Oil Capacity	0.8L
Gear Oil Capacity	320cc
Propeller Options	3-8"in.

Specs Description:

The "F" before number 9.8 means "FOUR STROKE".

The letters after number 9.8 means:

B=back control (Tiller) F=Forward(remote) control(Steer) M=manual start W=manual start or electric start S=short shaft L=long shaft

Suggestions on machine selection:

F9.8 and F8 belong to the same model family, with the same overall structure and parts. Their differences are mainly in horsepower and price.

DOWNLOAD

F8F9.8 outboard motor owner manual
