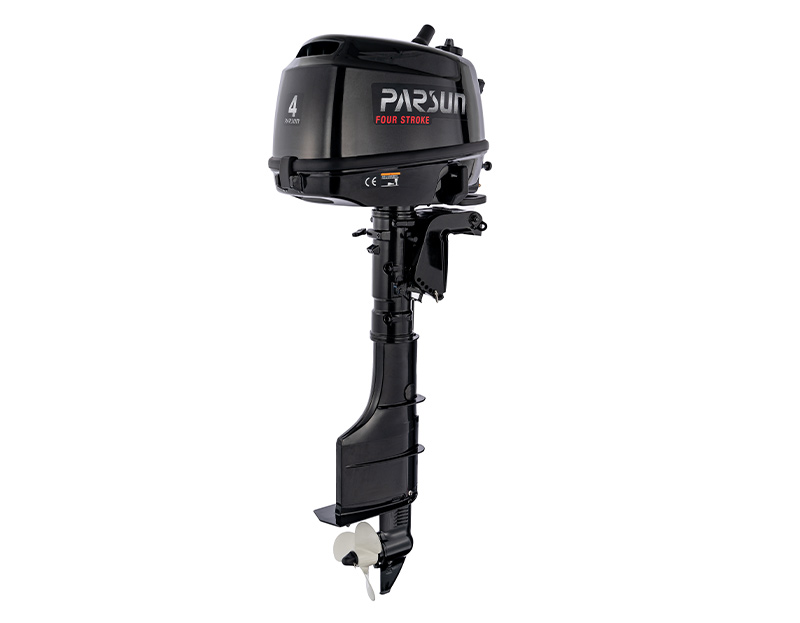

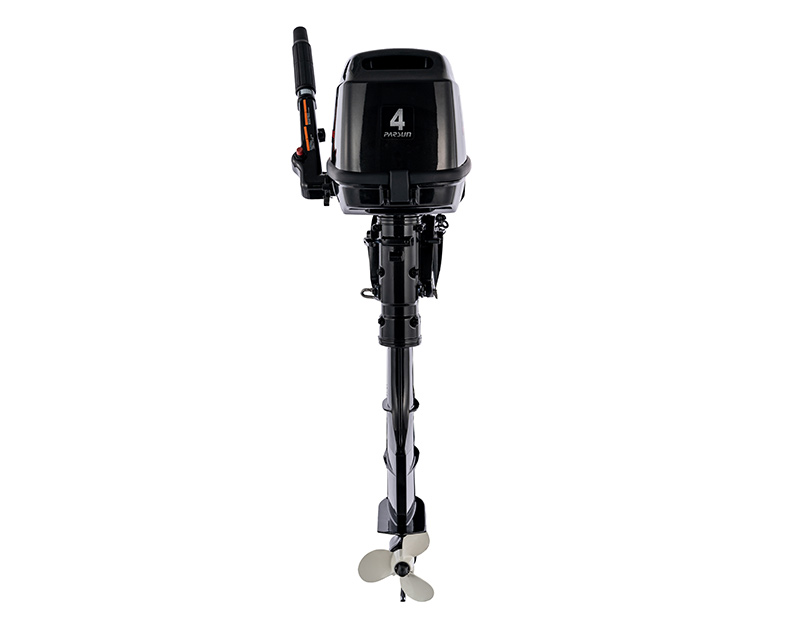

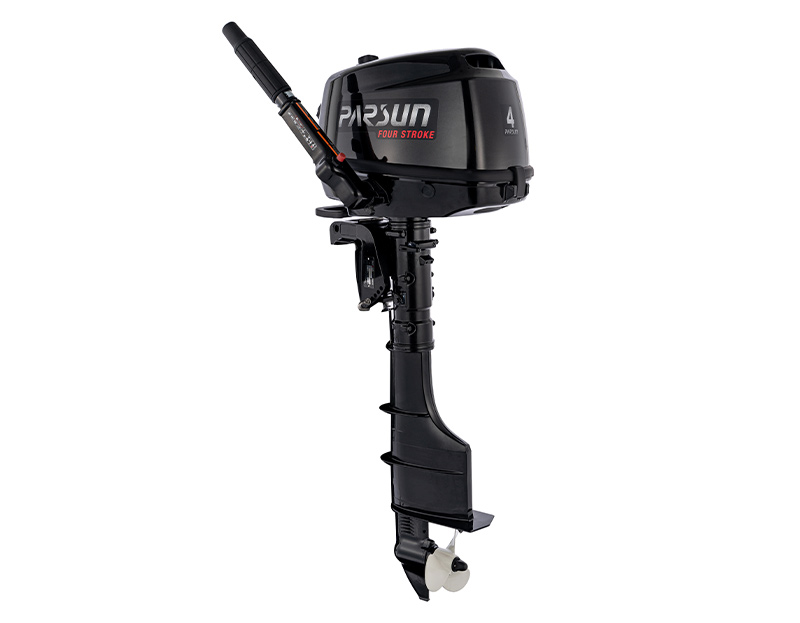

F4 Outboard Motor

F4 is a small power 4-stroke outboard motor，which is suitable to personal use, especially one person. It features with light weight, eco-friendly and lower fuel consumption. If your boat is within 3 meters, this outboard engine is a best choose.

Category: 4-Stroke Outboards

Previous Product Next Product

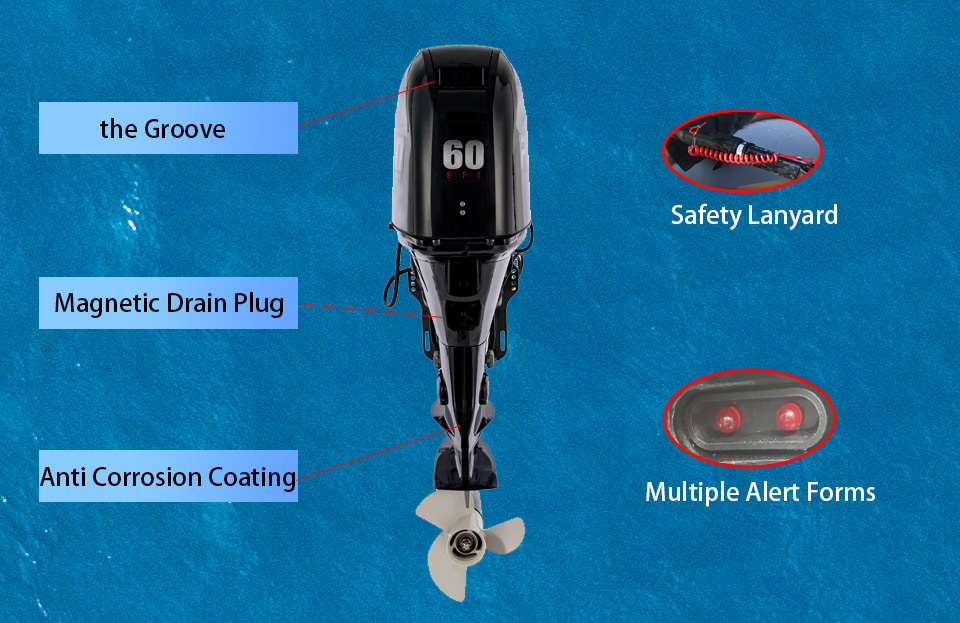

FEATURES

1、 the Groove on the Top Cover
Because there is a groove on the top cover, you will find it is very convenient to move the outboard motor or manual trim.
2、Magnetic Drain Plug for Replacing Oil Easily
3、Warning Systems for Engine Protection and Safety.
Multiple forms for faults alarm.
You can find the machine fault at the first time, because there will be a sound and a red light flashing at least.
4、Safety lanyard with emergency shut off for all the outboards
5、High grade marine aluminum alloy for ultimate corrosion protection.
1. Portable.
Small size and light weight, easy to transport, store, carry.
2. Environmentally friendly.
Lower emission, certified by EU CE and US EPA, meeting the legal regulatory requirements, no need to worry about sales and use.
3. Thanks to the optimization of the engine structure, the four-stroke outboard has lower noise, less vibration and better driving experience.
4. Easy starting with CDI/TCI ignition system.
5. Multi-tilt angle, convenient for shallow water driving.

SPECIFICATIONS

Model	F4
Specs Option	F4BMS/F4BML
Transom Height	15/20in.
Weight	24.5Kg/25.5Kg
Full Throttle Operating Range	4000～5000r/min
Maximum Putput	2.9kW（4HP）@4500r/min
Idling Speed(Neutral)	1500～1600 r/min
Engine Type	OHV
Displacement	112 cc
Bore*Stroke	59.0×41.5 mm (2.32×1.61in.)
Ignition System	TCI
Fuel Induction System	Carburetor
Control System	Tiller control
Start System	Manual start
Gear Positions	F-N-R
Gear Ratio	2.08
Trim And Tilt System	Manual control
Fuel Tank Capacity	built-in 1.3L
Max. Fuel Consumption	1.6L/h
Engine Oil Capacity	0.5L
Gear Oil Capacity	100cc
Propeller Potions	3-7"in

DOWNLOAD

F4 outboard motor owner manual
