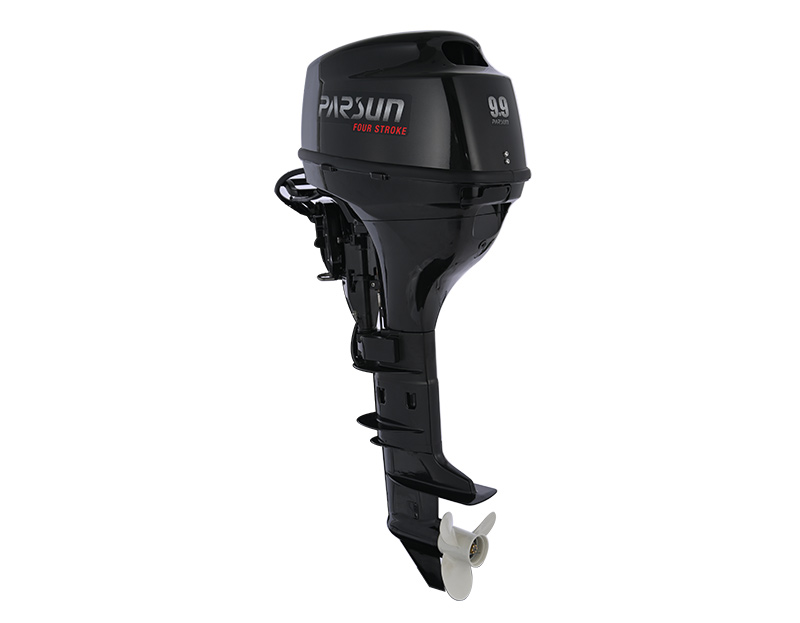

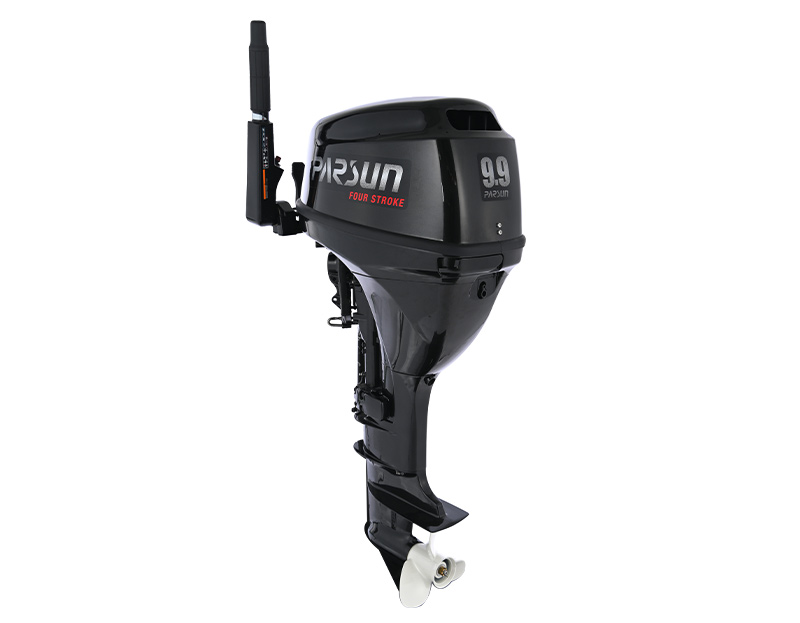

F9.9 Outboard Motor

F9.9 series is a low power four stroke outboard motor, both has enough power for personal recreation and enough flexibility for firefighting, disaster relief, etc. It can be matched with rubber boats, fishing boats, fire boats, rescue boats and other vessels. Its distinctive feature is the enlarged fuel tank supporting long distance sailing.

Category: 4-Stroke Outboards

Previous Product Next Product

FEATURES

Portable & Environment-friendly & Powerful & Efficient

1. Less emission, CE and EPA approved.
2. External large capacity fuel tank, support longer sailing time.
3. Overall length is within 1 meter, small enough to transport and pack.
4. Engine upgrade, greater load capacity, faster sailing speed, better power experience.
5. F9.9 has good acceleration performance and fuel economy through engine optimization measures.
6. Electric starting, eliminating the tedium of pulling.

SPECIFICATIONS

	Model	F9.9
	Specs Option	F9.9BMS/F9.9BML/F9.9BWS/F9.9BWL/F9.9FWS/F9.9FWL
	Transom Height	15.0in. /20in.
	Dry Weight	49-53Kg
	Full Rpm Range	4500～5500r/min
	Max. Output Power	7.3kW（9.9HP）@5000r/min
	Idling Rpm Range	900～1000 r/min
	Engine Type	2-cyl. SOHC
	Displacement	323 cc
	Bore X Stroke	59.0×59.0 mm
	Ignition System	CDI
	Fuel Induction System	Carburetor
	Steering System	Tiller/Remote control
	Starting System	Manual
	Gear Shift	F-N-R
	Gear Ratio	2.08
	Trim And Tilt	Manual
	Fuel Tank Capacity	24L(External)
	Max. Fuel Consumption	3.5L/h
	Engine Oil Capacity	1.0L
	Gear Oil Capacity	250cc
	Propeller Options	3-8"or 3-10"or 3-11" or 3-12"

Specs introduction:

The "F" in the F9.9 means it is a four stroke outboard motor.
other letters in the model means:
B=Back contro(tiller handle) M=Manual start F=Front control ( remote control ) W=Manual start and electric start S=Short shaft L=Long shaft

DOWNLOAD

F9.9 outboard motor owner manual
