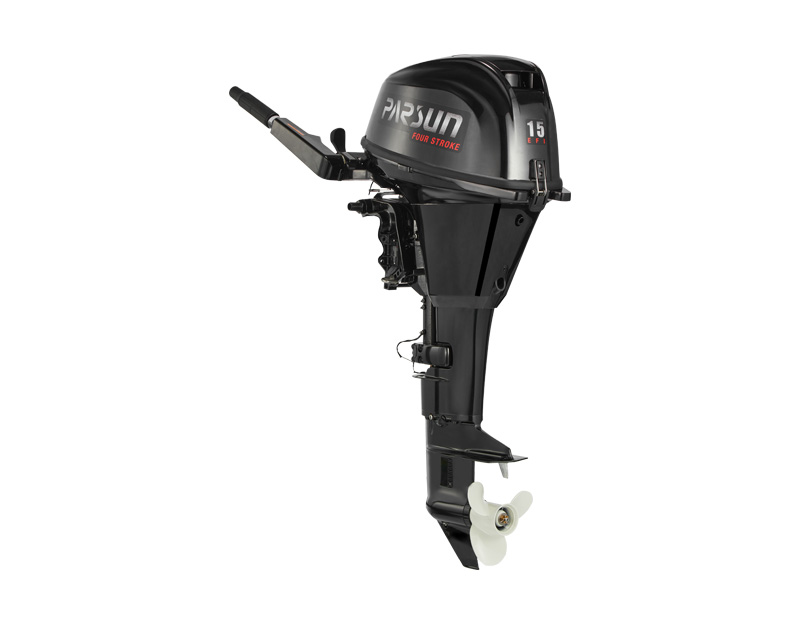

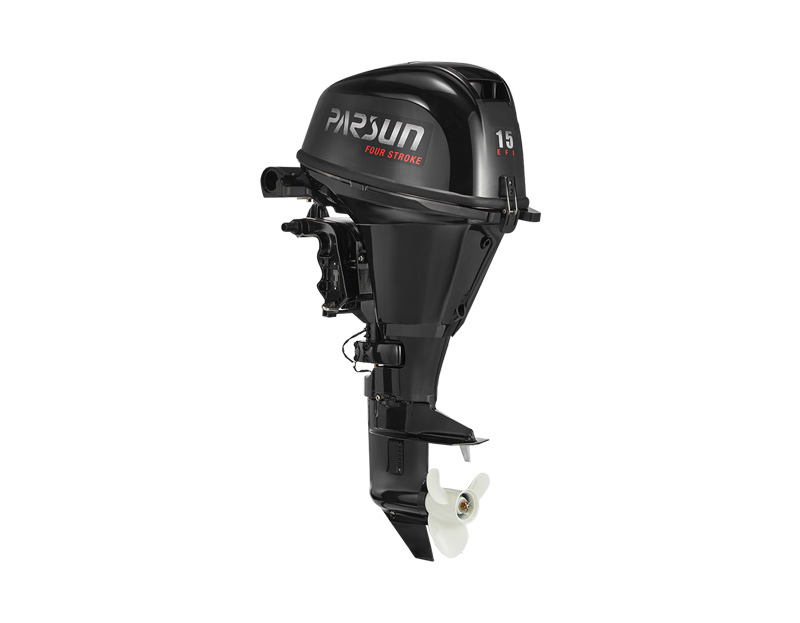

F15A Outboard Motor

F15A series is a 4-stroke small outboard motor from Parsun. Compared with the F15, F15A is structurally optimized in terms of engines. With same output power, F15A has higher engine displacement which increases hull carrying capacity. And this is more beneficial to users with cargo needs. F15A outboard motor is the entry product for small team water sports, especially for 5-7 meters small boats, such as sea fishing, surfing, etc.

Category: 4-Stroke Outboards

Previous Product Next Product

FEATURES

Product Advantages

1. Less emissions and more environmental protection.
2. Passed EU CE and US EPA certification.
3. External large capacity fuel tank, supporting longer sailing time
4. Adopt CDI ignition system, making it easy to start.
5. Faster sailing speed, better power experience.
6. Optimized engine structure makes less weight and less fuel consumption.
7. Oil pre-set, easy to use.
10. Electric start optional, eliminating the tedium of pulling.
Opitonal EFI

The application of EFI technology in small outboards provides a good choice for users to experience a more intelligent four stroke outboard motor with lower fuel consumption，quiet operation.

SPECIFICATIONS

Model	F15A
Specs Option	F15ABMS/F15ABML/F15ABWS/F15ABWL/F15AFWS/F15AFWL
Transom Height	15/20in.
Dry Weight	51.7-55.7Kg
Full Rpm Range	5000～6000r/min
Max. Output Power	11kW（15HP）@5000r/min
Idling Rpm Range	1000～1100 r/min
Engine Type	2-cyl. SOHC
Displacement	362 cc
Bore * Stroke	63.0×58.1 mm
Ignition System	CDI
Fuel Induction System	Carburetor/EFI
Steering System	Tiller/Remote Control
Starting System	Manual start
Gear Shift	F-N-R
Gear Ratio	2.08
Trim And Tilt	Manual
Fuel Tank Capacity	24L
Max. Fuel Consumption	5.4L/h
Engine Oil Capacity	1.6L
Gear Oil Capacity	250cc
Propeller Options	3-8"or 3-10"or 3-11" or 3-12"

DOWNLOAD

F15A outboard motor owner manual
