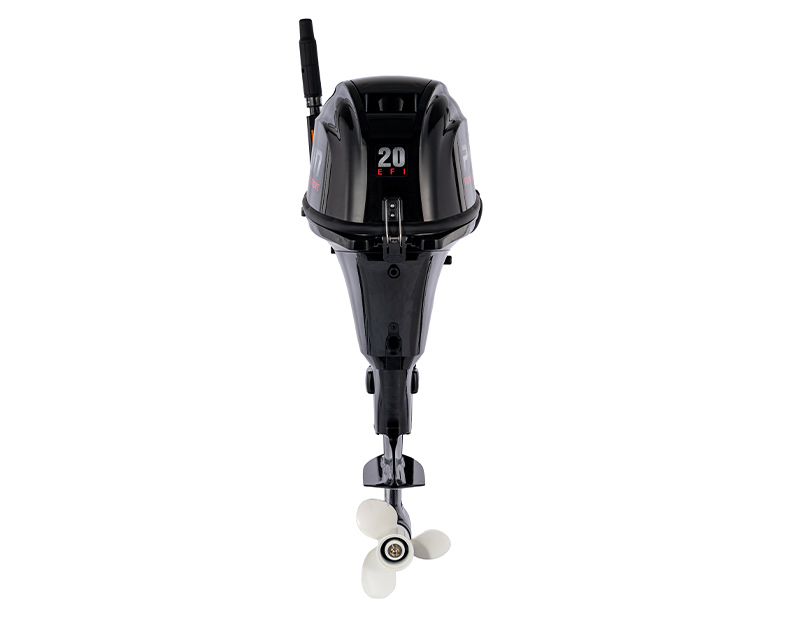

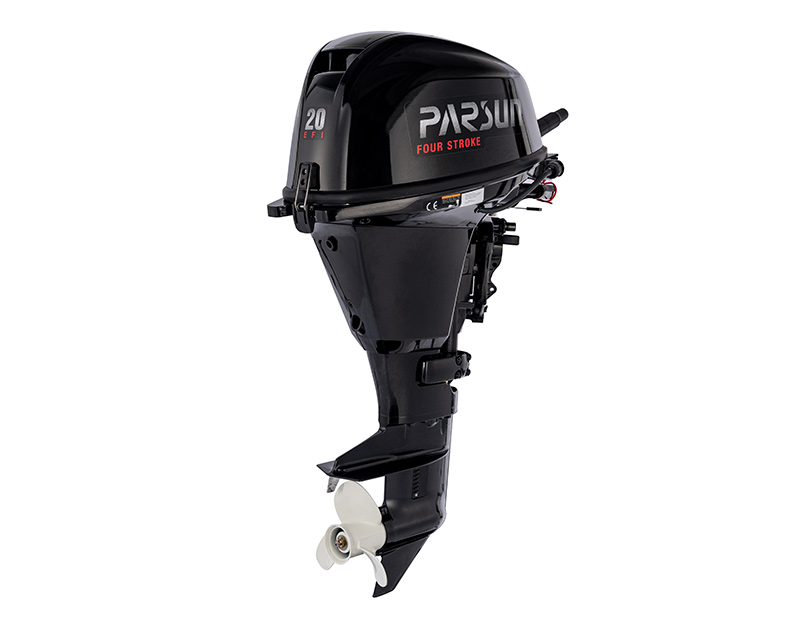

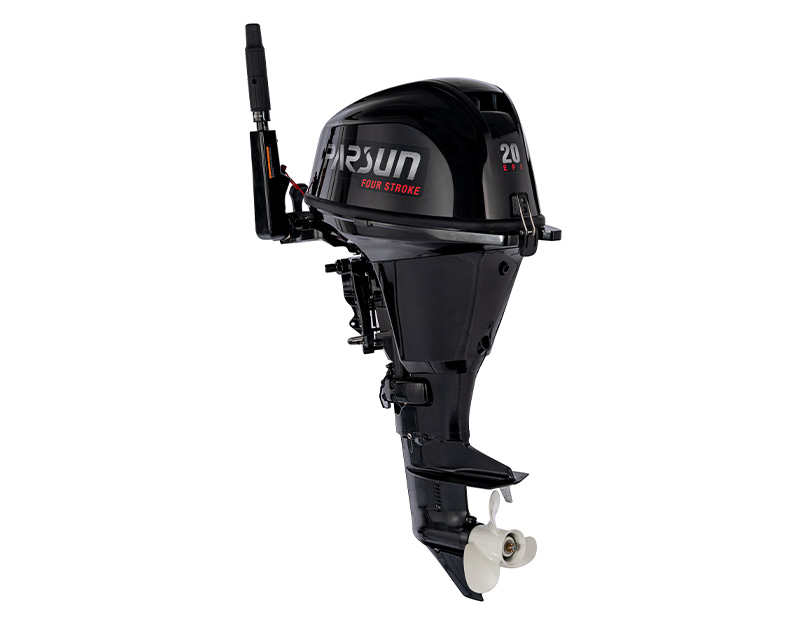

F20E Outboard Motor

The F20E is a very environmentally friendly, durable and reliable four stroke 20hp outboard motor. The key feature of F20E is that Users can choose EFI version and carburetor version according to their own needs. F20E outboard motor with electronic fuel injection system can provide efficient power, excellent fuel economy and quiet operation to users at an affordablehe price.

Category: 4-Stroke Outboards

Previous Product Next Product

FEATURES

Product Advantages

1. Less emissions and more environmental protection.
2. Passed EU CE and US EPA certification.
3. External large capacity fuel tank, supporting longer sailing time
4. Adopt CDI ignition system, making it easy to start.
5. Faster sailing speed, better power experience.
6. Optimized engine structure makes less weight and less fuel consumption.
7. Oil pre-set, easy to use.
10. Electric start optional, eliminating the tedium of pulling.

SPECIFICATIONS

Model	F20E
Specs Option	F20EBMS/F20EBML/F20EBWS/F20EBWL/F20EFWS/F20EFWL
Transom Height	15/20in.
Dry Weight	51.7-54.7Kg
Full Rpm Range	5000～6000r/min
Max. Output Power	14kW（20HP）@5000r/min
Idling Rpm Range	1000～1100 r/min
Engine Type	2-cyl. SOHC
Displacement	362 cc
Bore * Stroke	63.0×58.1 mm
Fuel Induction System	EFI/Carburetor
Ignition System	Micro computer
Steering System	Tiller/Remote Control
Starting System	Manual start or Electric start
Gear Shift	F-N-R
Gear Ratio	1.85
Trim & Tilt System	Manual
Fuel Tank Capacity	24L
Max. Fuel Consumption	6.9L/h
Engine Oil Capacity	1.6L
Gear Oil Capacity	250cc
Propeller Options	3-8"or 3-10"or 3-11" or 3-12"

Specification Description:

Compared to F20A, F20E has a smaller gear ratio,which enables the outboard to run at high speed with the engine at a low speed, reducing fuel consumption.
