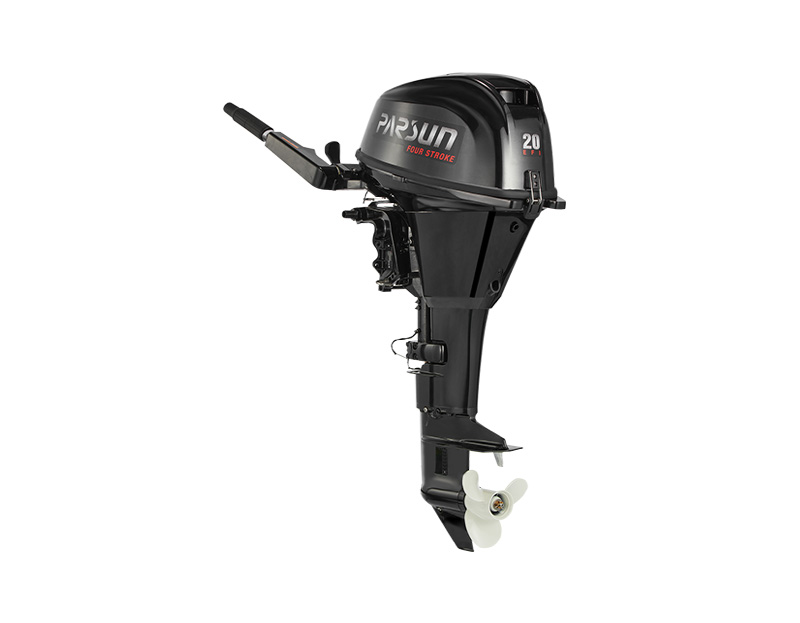

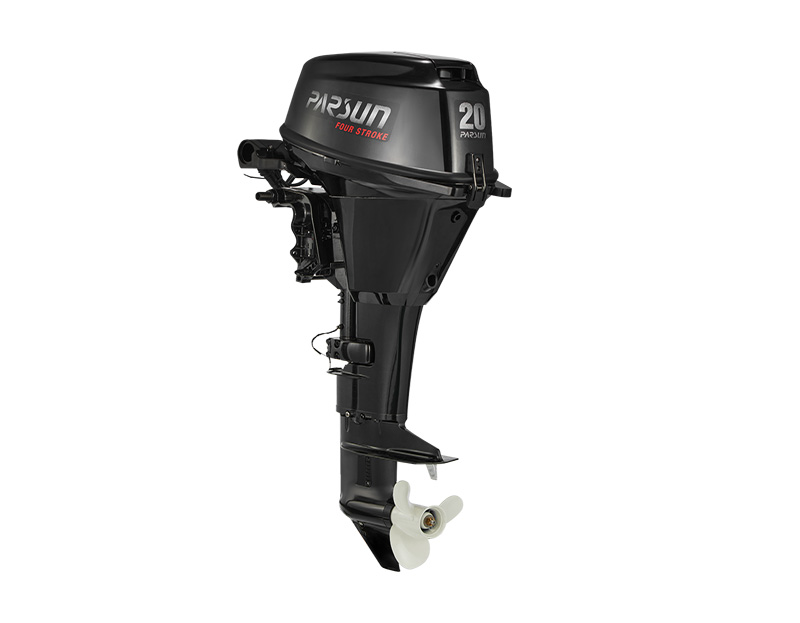

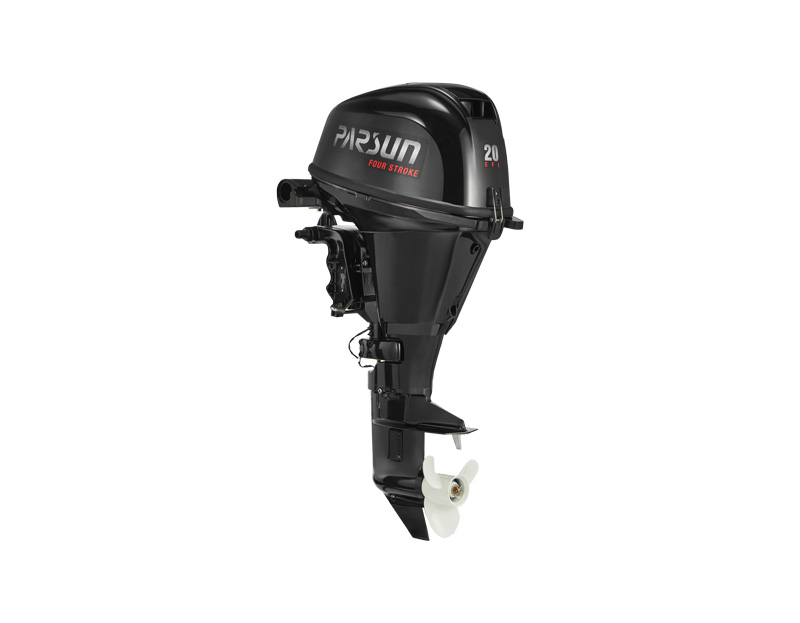

F20A Outboard Motor

The F20A series is a small 4-stroke outboard motor from Parsun, with greater hull carrying capacity, making it more beneficial for users with cargo needs or a few people fishing together. The F20A outboard motor is the entry product for small team water sports, especially for 5-7 meters small boats, such as sea fishing, surfing.

Category: 4-Stroke Outboards

Previous Product Next Product

FEATURES

Product Advantages

1. Less emissions and more environmental protection.
2. Passed EU CE and US EPA certification.
3. External large capacity fuel tank, supporting longer sailing time
4. Adopt CDI ignition system, making it easy to start.
5. Faster sailing speed, better power experience.
6. Optimized engine structure makes less weight and less fuel consumption.
7. Oil pre-set, easy to use.
10. Electric start optional, eliminating the tedium of pulling.

SPECIFICATIONS

Model	F20A
Specs Option	F20ABMS/F20ABML/F20ABWS/F20ABWL/F20AFWS/F20AFWL
Transom Height	15/20in.
Dry Weight	51.7-54.7Kg
Full Rpm Range	5000～6000r/min
Max. Output Power	14kW（20HP）@5000r/min
Idling Rpm Range	1000～1100 r/min
Engine Type	2-cyl. SOHC
Displacement	362 cc
Bore * Stroke	63.0×58.1 mm
Ignition System	CDI
Fuel Induction System	Carburetor/EFI
Steering System	Tiller/Remote Control
Starting System	Manual start
Gear Shift	F-N-R
Gear Ratio	2.08
Trim & Tilt System	Manual
Fuel Tank Capacity	24L
Max. Fuel Consumption	6.9L/h
Engine Oil Capacity	1.6L
Gear Oil Capacity	250cc
Propeller Options	3-8"or 3-10"or 3-11" or 3-12"

DOWNLOAD

F20A outboard motor owner manual
