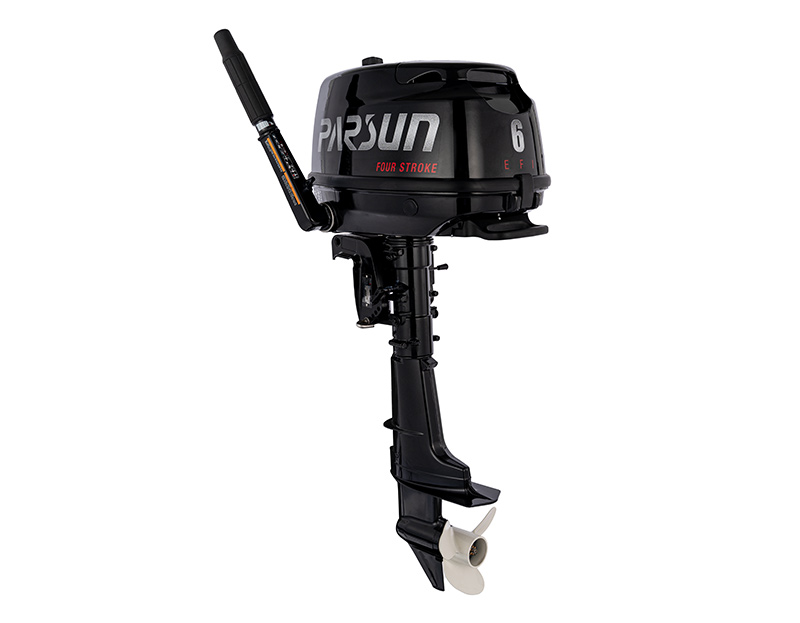

F6A Outboard Motor

F6A is a 4-stroke small outboard motor for personal use or family water recreation, which always is used to rubber boats, fishing boats and other small boats. F6A is one of the smallest portables, weigh in at as little as 27kg, with streamlined overhead-valve, one-cylinder designs. Their light weights, combined with built-in carrying handles and an oil-leak prevention system for on-side storage capability create true portability. Add to that their efficiency, performance and reliability and these pint-sized powerhouses are perfect for all sorts of light duty.

Category: 4-Stroke Outboards

Previous Product Next Product

FEATURES

High Quality Assurance

1、Advanced production technology, strict quality control（ISO9001/ISO14001), you can trust the product reliability.
2、With more than 20 years of production experience, we have accumulated rich design, production technology and a stable & skilled team of workers.
3、100% in-factory testing before shipping, including 500 hours non-stop running after designing and one hour running at a full speed in a water test tank before packed.
6. Convenient auxiliary prime pump in cowling for easy starting after long storage. A small auxiliary prime pump is fitted to the fuel pipe before the carburetor in the cowling. By ensuring the delivery of fuel to the carburetor, the engine can be started smoothly even after long storage;
7. Bigger displacement, 3-5% more power output;
8. Wet-sump, forced bath lubrication system, protect the engine better;
9. CDI Ignition for easy start in all conditions: idle speed will be down to 1200~1300rpm (the fuel consumption will be reduced) and more quiet at idle speed by such new system.
Opitonal EFI

The application of EFI technology in small outboards provides a good choice for users to experience a more intelligent four stroke outboard motor with lower fuel consumption，quiet operation.

SPECIFICATIONS

Model	F6A
Specs Option	F6ABMS/F6ABML
Transom Height	15 or 20.0in.
Weight	27Kg/28Kg
Max. Rpm Range	4500～5500r/min
Max. Output Power	4.4kW（6HP）@5000r/min
Idling Rpm Range	1450～1550 r/min
Engine Type	OHV
Displacement	148cc
Bore X Stroke	64.0×46.0 mm
Ignition System	CDI
Fuel Induction System	Carburetor/EFI
Steering System	Tiller
Starting System	Manual
Gear Shift	F-N-R
Gear Ratio	2.15
Trim And Tilt	Manual
Fuel Tank	Built-in 1.3L
Max. Fuel Consumption	2.3L/h
Engine Oil Capacity	0.6L
Gear Oil Capacity	195cc
Propeller Options	3-9"in
