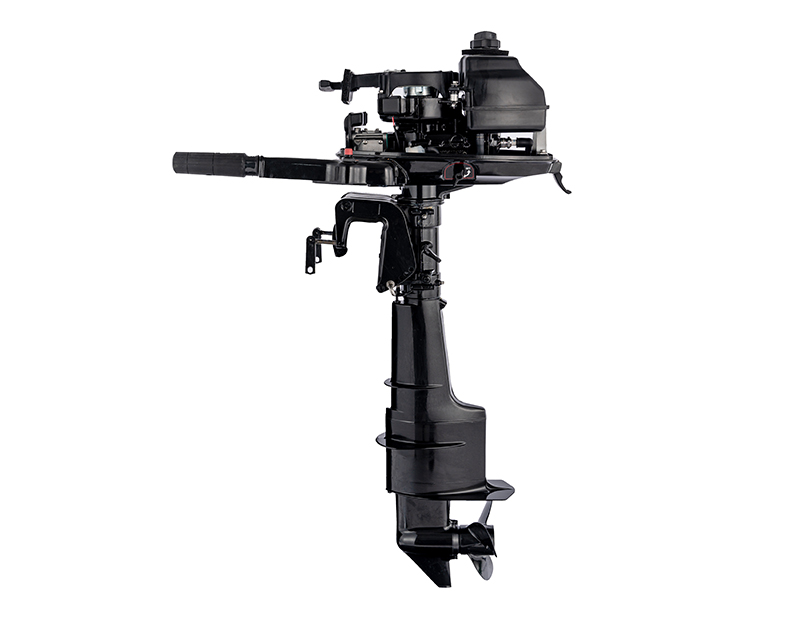

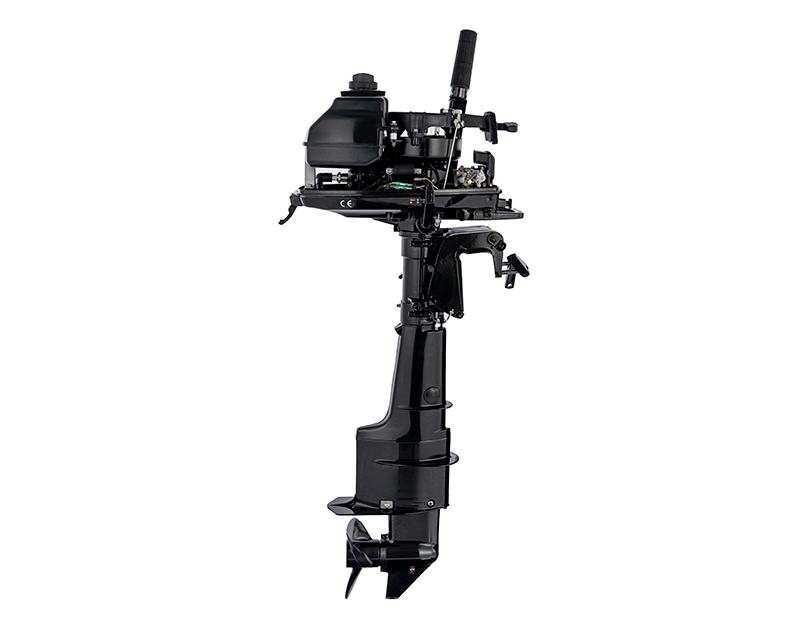

T5.8 is a 5.8hp 2-stroke outboard motor. No matter you want to go out fishing alone or enjoy time on the water with your family, this outboard motor will perform well. It features light weight, easy maintenance, low fuel consumption. Of course, reliability and durability are assured.
Category: 2-Stroke Outboards
Product Features
Product Advantages
1. More power in its class for better acceleration.
2. With 2.15 gear ratio, T5.8 is unmatched in its class and delivers higher speed at low rpm, lower fuel consumption and less noise.
3. There is no difficulties for users to carry or move the outboard motor, because its weight is only 20kg.
4. As a two-stroke outboard motor, users can completely believe in its performance stability, reliability and ease of maintenance.
5. It also features good starting performance and durability.
SPECIFICATIONS
| Model | T5.8 | |
| Specs Options | T5.8BMS/T5.8BML | |
| Transom Height | 15in./20in. | |
| Dry Weight | 20-21Kg | |
| Max. RPM range | 4500～5500r/min | |
| Max. Outpower | 4.3kW（5.8HP）@5000r/min | |
| Idling RPM range | 1000～1100 r/min | |
| Engine Type | L1 | |
| Displacement | 74.6cc | |
| Bore X Stroke | 55.0×43 mm | |
| Ignition Timing | CDI | |
| Steering System | Tiller handle | |
| Starting System | Manual start | |
| Gear Shift | F-N-R | |
| Gear Ratio | 2.15 | |
| Trim &Tilt | Manual | |
| Fuel Tank Capacity | Built-in 2.7L | |
| Max. Fuel Consumption | 3.1L/h | |
| Gear Oil Capacity | 100cc | |
| Fuel and Oil Mixing Ratio | 50:1 | |
| Propeller | 3-8" | |
| Parameter description: 1.B=Back contro( tiller handle), M=Manual starting, S=Short shaft, L=Long shaft | ||
