DESCRIPTION
DESCRIPTION

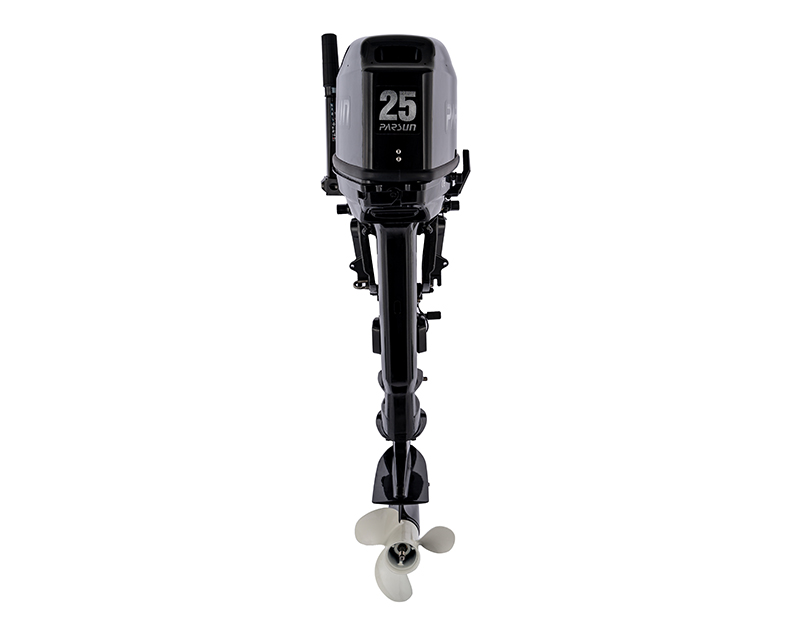

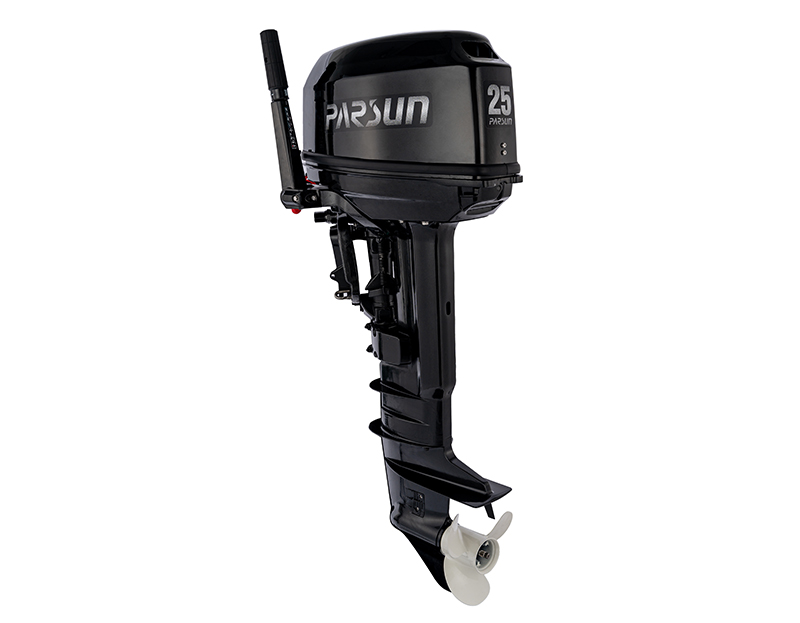

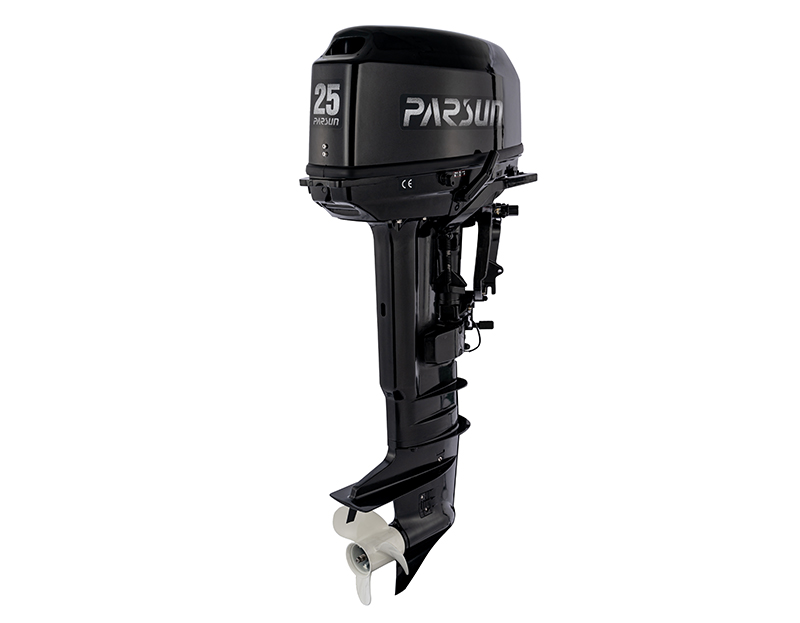

T25 is a popular two-stroke 25HP outboard motor for fishermen with good compatibility, easier maneuverability and superb performance stability and load capacity. You are assured that T25 outboard motor will carry you home safely and will bring the catch back to the dock without any problems. Of course, if it is used for personal entertainment，it will perform well too.
Category: 2-Stroke Outboards
SPECIFICATIONS
| Model | T25 | |
| Specs Options | T25BMS/T25BML/T25FWS/T25FWL/T25BWS/T25BWF | |
| Transom Height | 15in./20in. | |
| Dry Weight | 52-57.5Kg | |
| Max. RPM range | 4500～5500r/min | |
| Max. outpower | 18.4kW（25HP）@5000r/min | |
| Idling RPM range | 1050～1150 r/min | |
| Engine Type | L2 Reed Valve | |
| Displacement | 496cc | |
| Bore X Stroke | 72×61 mm | |
| Ignition Timing | CDI | |
| Steering System | Tiller handle | |
| Starting System | Manual start/electric start | |
| Gear Shift | F-N-R | |
| Gear Ratio | 2.08 | |
| Trim &Tilt | Manual | |
| Fuel Tank Capacity | 24L | |
| Max. Fuel Consumption | 11L/h | |
| Gear Oil Capacity | 320cc | |
| Mixing Ratio(fuel:oil) | 50:1 | |
| Propeller | 3-11"/12" | |
Parameter description:
1. B=Back control (tiller handle), F=Front control(remote control box), M=Manual start, W= Electric starting and Manual starting，S=Short shaft, L=Long shaft
