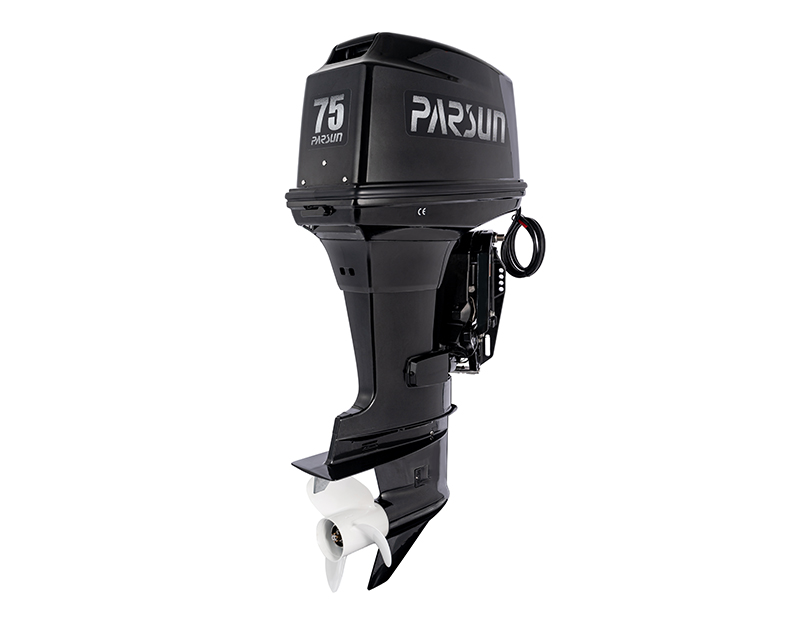

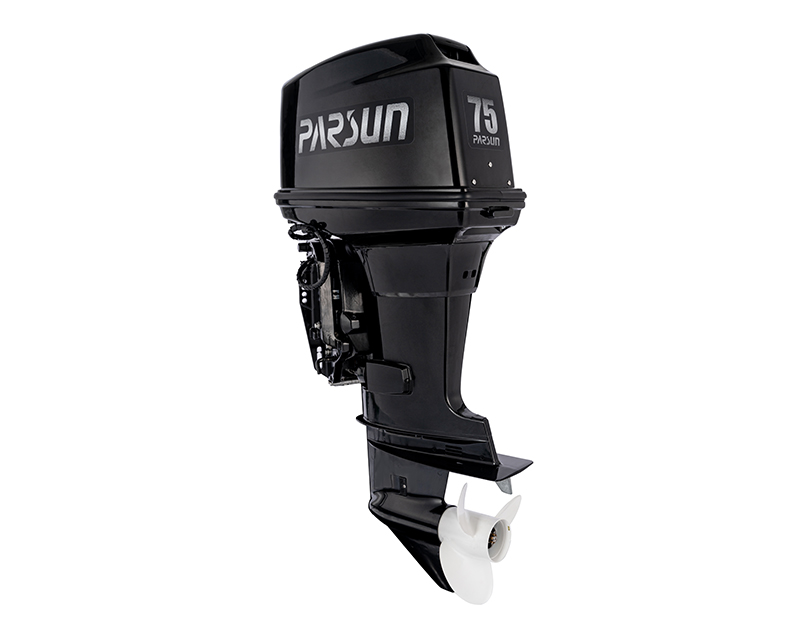

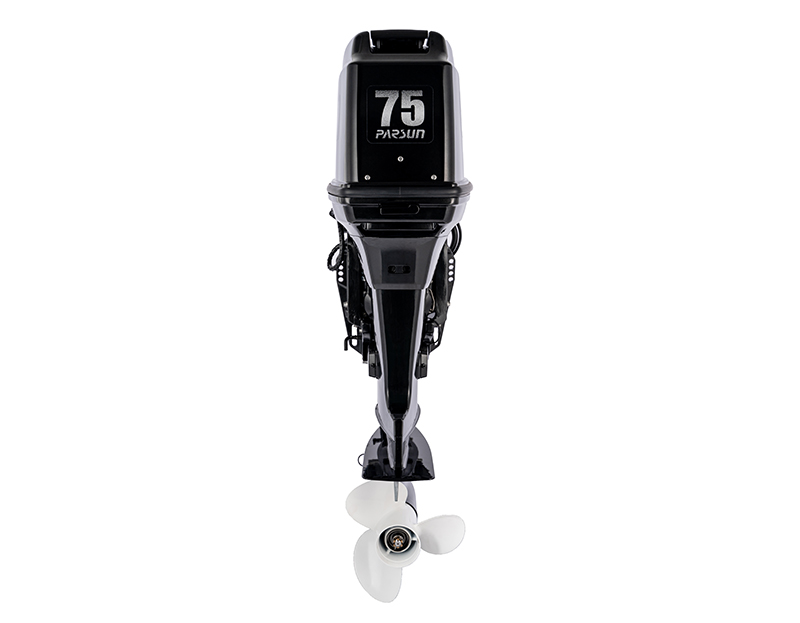

T75 is a 75hp two stroke outboard motor with the weigh is around 120kg which makes it ideal for small 15-17ft skiffs. This engine has been fully boat tested and it runs excellent. 3 cylinder 75hp outboards are in high demand as they are known as work horse engines. They always seem to be dependable and we often see them outlive the boats they are installed on. Many boaters prefer the performance of mid-range 2 stroke outboards over 4 stroke motors.
Category: 2-Stroke Outboards
SPECIFICATIONS
| Model | T75 | |||||
| Specs Options | T75BML-D/T75BMX-D/T75BEL-D/T75BEX-D/T75FEL-T/T75FEX-T | |||||
| Max. Output Power | 75HP(55.2KW) | |||||
| Transom height | 20/25in. | |||||
| Weight | 115-122kg | |||||
| Max. RPM Range | 4500～5500r/min | |||||
| Idling RPM Range | 750～850r/min | |||||
| Engine Type | L3 | |||||
| Displacement | 1141cc | |||||
| Bore×Stroke | 82.0×72.0mm | |||||
| Ignition System | CDI | |||||
| Fuel Induction System | Carburettor | |||||
| Steering System | Tiller/Remote Control | |||||
| Starting System | Manual or Electric | |||||
| Gear Shift | F-N-R | |||||
| Gear Ratio | 2.0(26/13) | |||||
| Trim and Tilt | Gas Assist/Electric | |||||
| Fuel Tank Capacity | 24L | |||||
| Max. Fuel Consumption | 34L/h | |||||
| Lubrication System | 50:1 | |||||
| Gear Oil Capacity | 610cc | |||||
| Propeller Options | 3-13" / 15" / 17" | |||||
