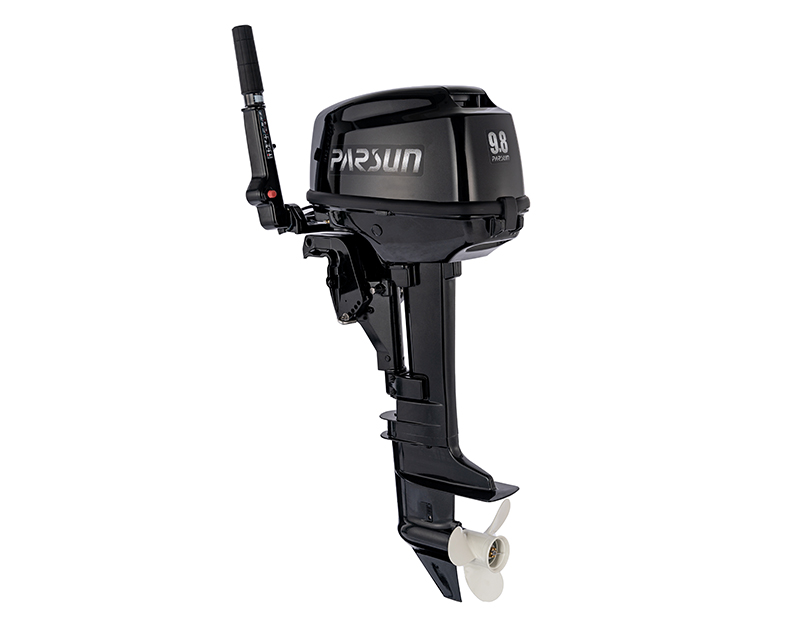

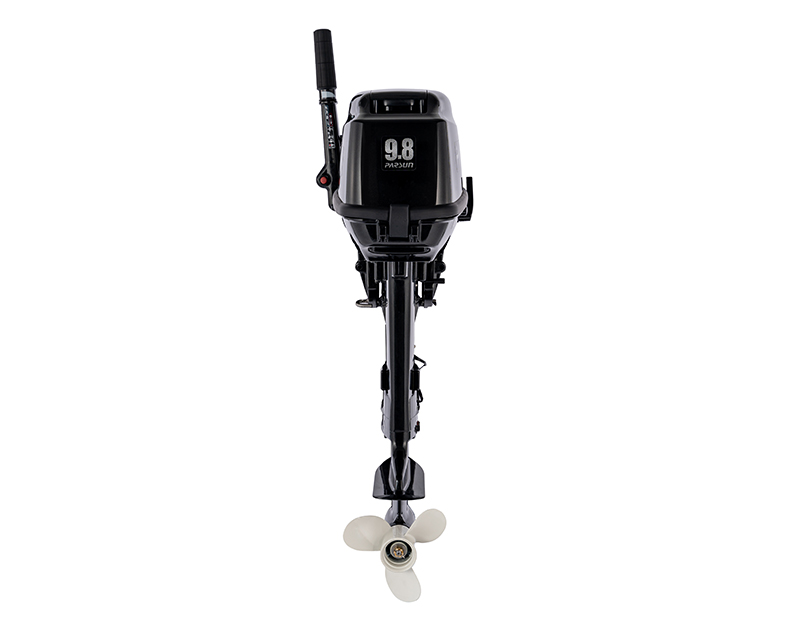

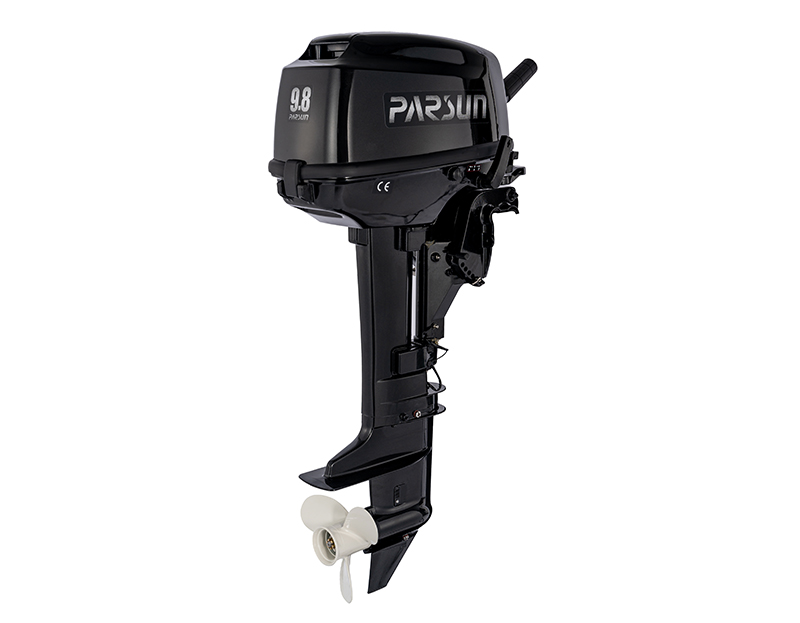

T9.8 Outboard Motor

T9.8 is an excellent and durable two-stroke outboard with the advantages of light weight, small size and sufficient power. Compared with other brands of the same type of outboard, T9.8 can be easily started. Fiberglass boats, aluminum boats and other small boats under 6 meters can be installed and used. You will experience the unique charm of T9.8 when you set off by boat with your family.

Category: 2-Stroke Outboards

Previous Product Next Product

Features

Product Advantages

Efficient fuel supply system and air intake system put fuel and air mixed fuller, burning totally and lower discharge of pollutants.

1. Small outboard, light weight, small size, easy to transport and store.

2. Simple structure, mature technology, excellent performance.

3. Modular electronic ignition, easy to start and simple maintenance.

4. Adopt marine-grade anti-corrosion material to enhance durability.

SPECIFICATIONS

Model	T9.8
Specs Options	T9.8BMS/T9.8BML
Transom Height	15in./20in.
Dry Weight	26-27Kg
Max. RPM range	5000～6000r/min
Max. outpower	7.2kW（9.8HP）@5000r/min
Idling RPM range	1150～1250 r/min
Engine Type	L2 Reed Valve
Displacement	169cc
Bore X Stroke	55.0×43 mm
Ignition Timing	CDI
Steering System	Tiller handle
Starting System	Manual start
Gear Shift	F-N-R
Gear Ratio	2.08
Trim &Tilt	Manual
Fuel Tank Capacity	12L
Max. Fuel Consumption	5.1L/h
Gear Oil Capacity	320cc
Mixing Ratio(Fuel:Oil)	50:1
Propeller	3-8.3"
Parameter description: The initial letter "T" means "Two Stroke". B=Back Control (Tiller handle ）, M=Manual starting, S=Short shaft, L=Song shaft

DOWNLOAD

T9.8 outboard motor owner manual
