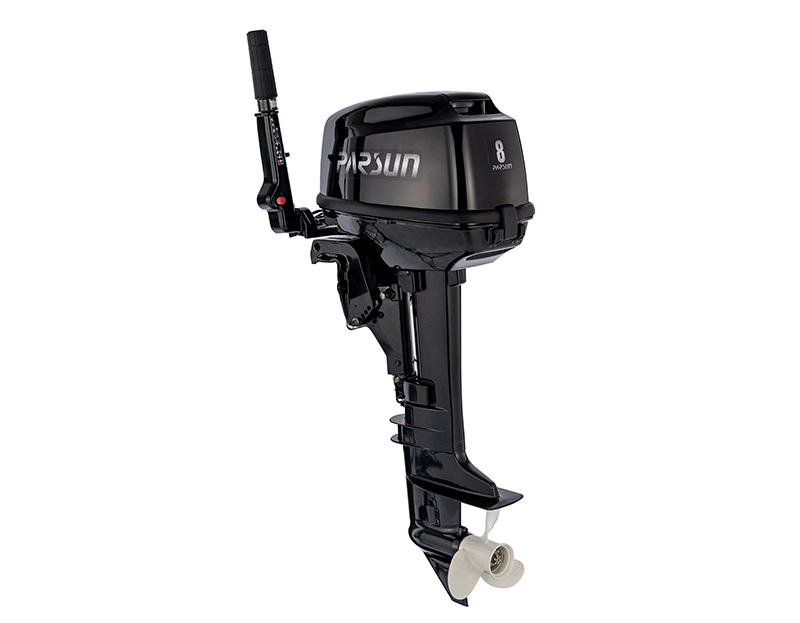

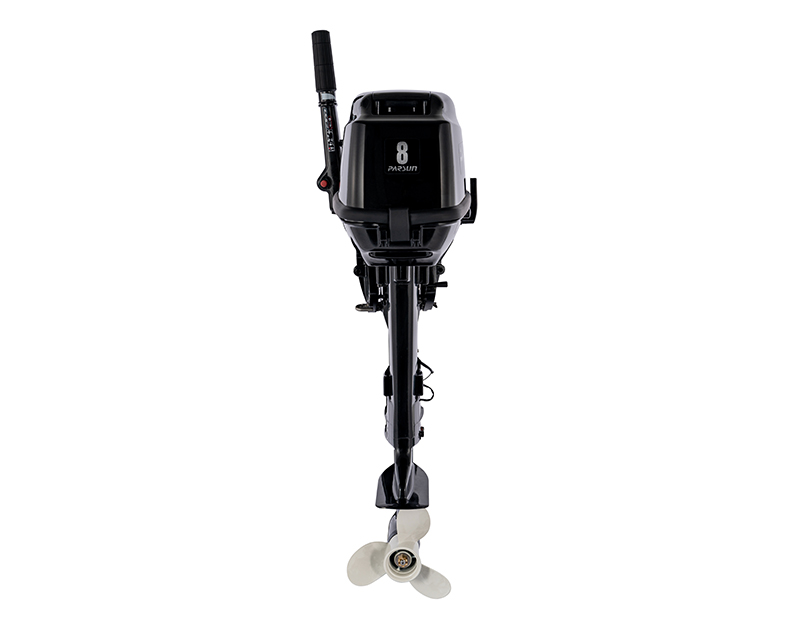

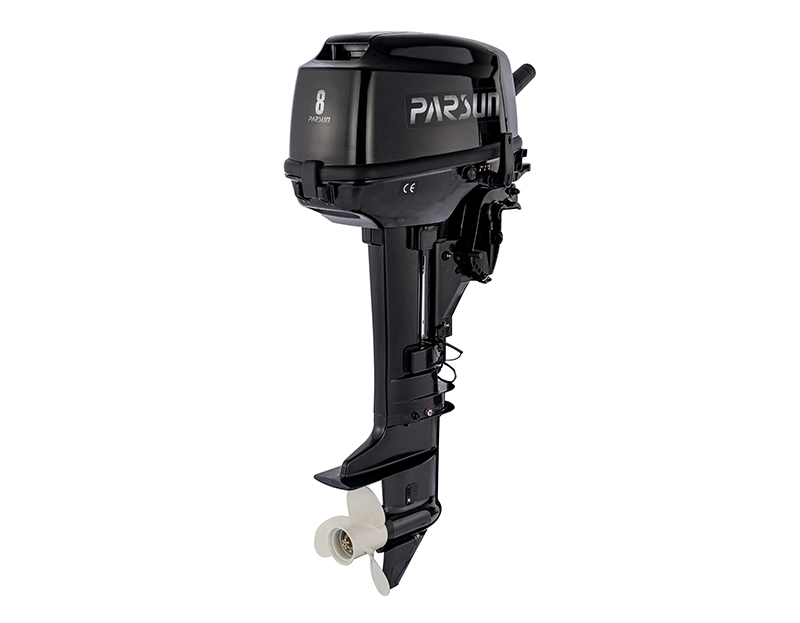

T8 Outboard Motor

T8 is a endurable and portable two-stroke outboard motor with L2 engine and 169cc displacement, which ensure the outboard is powerful enough to meet your water recreation, no matter you want to go fishing alone or enjoy time on the water with your family. If you drive it by yourself, you will be surprised at its easy poeration and lightweight.

Category: 2-Stroke Outboards

Previous Product Next Product

Features

Product Advantages

Efficient fuel supply system and air intake system put fuel and air mixed fuller, burning totally and lower discharge of pollutants.

1. Small outboard, light weight, small size, easy to transport and store.

2. Simple structure, mature technology, excellent performance.

3. Modular electronic ignition, easy to start and simple maintenance.

4. Adopt marine-grade anti-corrosion material to enhance durability.

SPECIFICATIONS

Model	T8
Specs Options	T8BMS/T8BML
Transom Height	15in./20in.
Dry Weight	26-27Kg
Max. RPM range	4500～5500r/min
Max. outpower	4.3kW（5.8HP）@5000r/min
Idling RPM range	1150～1250 r/min
Engine Type	L2 Reed Valve
Displacement	169cc
Bore X Stroke	55.0×43 mm
Ignition Timing	CDI
Steering System	Tiller handle
Starting System	Manual start
Gear Shift	F-N-R
Gear Ratio	2.08
Trim &Tilt	Manual
Fuel Tank Capacity	12L
Max. Fuel Consumption	4.3L/h
Gear Oil Capacity	320cc
Mixing Ratio	50:1
Propeller	3-8.3"
Parameter description: 1. B=Back Control (tiller handle), M=Manual starting, S=short shift, L=Long shift

DOWNLOAD

T8 outboard motor owner manual
