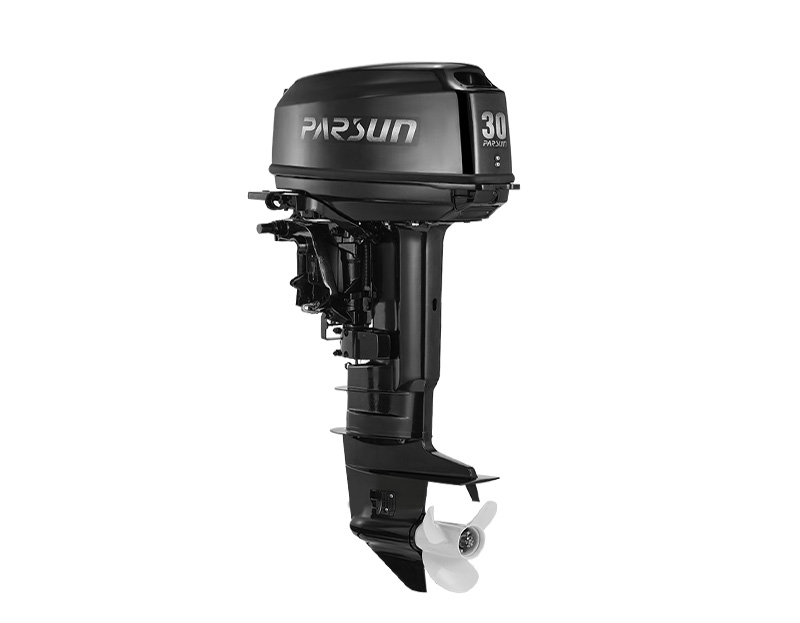

T30A Outboard Motor

T30A is a 30hp 2-stroke outboard motor widely used in aquaculture industry, which can be matched with a variety of ship types，the length ranging from 10 feet to 16 feet. T30A and T25 are from the same outboard motor development platform, so the shape and parameters are basically the same. Therefore, in the same power performance, the fuel consumption of T30 is much lower than that of other brands of the same level.

Category: 2-Stroke Outboards

Previous Product Next Product

SPECIFICATIONS

Model	T30A
Specs Options	T30ABMS/T30ABML/T30AFWS/T30AFWL/T30ABWS/T30ABWL
Max. Output Power	30HP(22KW)
Transom height	15/20in.
Dry Weight	52-57.5kg
Max. RPM Range	4500～5500r/min
Idling RPM Range	1050～1150r/min
Engine Type	2-cyl.
Displacement	496cc
Bore×Stroke	72.0×61.0mm
Ignition System	CDI
Steering System	Tiller/Remote Control
Starting System	Manual or Electric
Gear Shift	F-N-R
Gear Ratio	2.08
Trim & Tilt	Manual
Fuel Tank Capacity	24L
Max. Fuel Consumption	12L/h
Lubrication System	50:1
Gear Oil Capacity	320cc
Propeller	11" or 12"

Parameter description:

The propeller choice will vary by boat size and application.
B=Back Control(Tiller controk), F=Front control(Remote control), M=Manual start, S=Short shaft, L=Long shaft, W=Manual starting and electric starting

DOWNLOAD

T30A outboard motor owner manual
