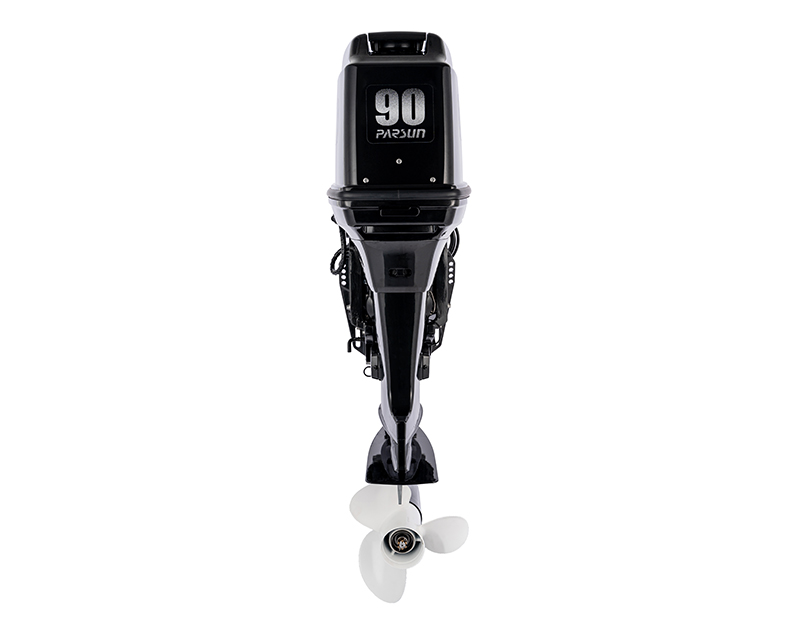

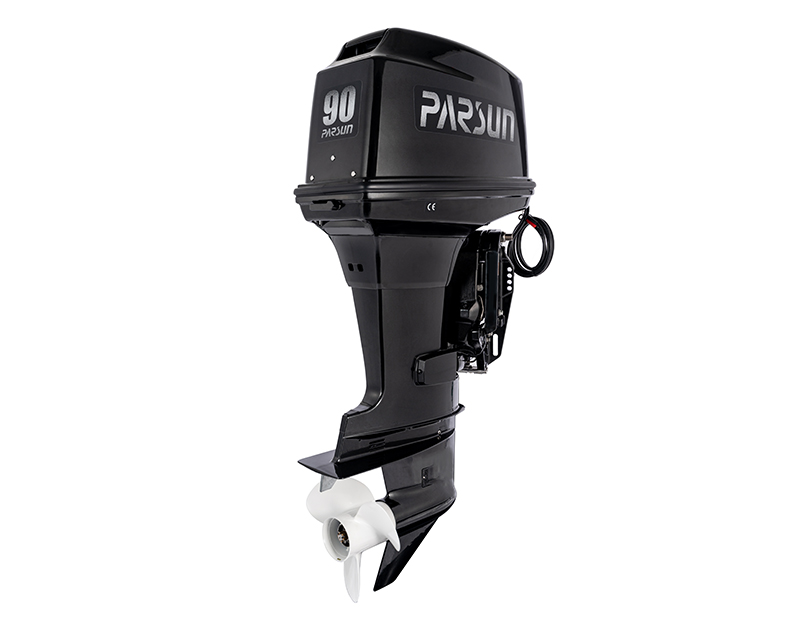

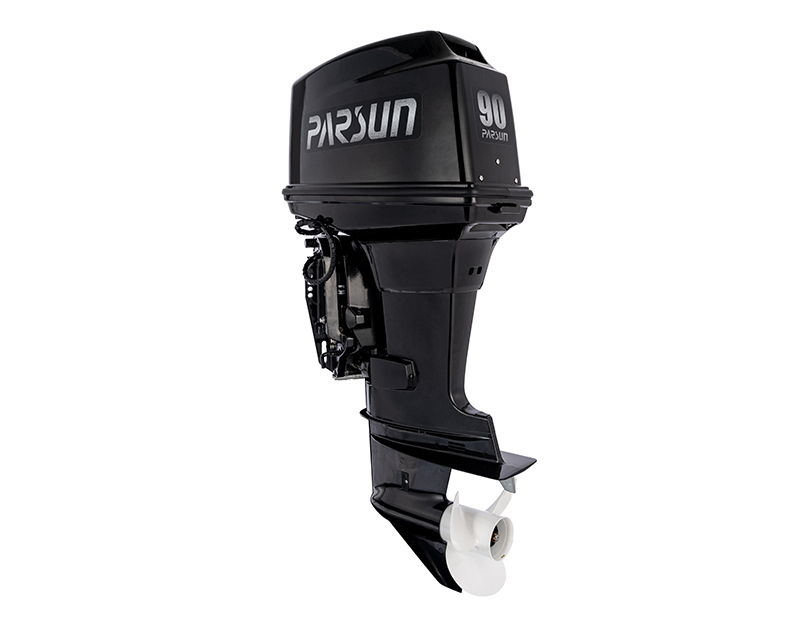

T90 Outboard Motor

The T90 is a powerful 2-stroke outboard motor with a displacement of 1141cc. As a high-power option, it is suitable for larger boats with a minimum transom height of 20 inches. Electric start and electric trim and tilt, with remote control, make the T90 easy to operate.

Category: 2-Stroke Outboards

Previous Product Next Product

FEATURES

1. Simple structure. Compared with the four stroke outboard motors, the two stroke outboard motors have no too many circuits.
2. Light weight. In the same horsepower class, the two stroke outboards are much lighter than the four stroke outboards.
3. Stable performance. Thanks to the simple structure and mature technology, the two-stroke outboard engine has stable performance, is not prone to failure and has better durability.
4. Easy to repair and maintain with low cost.

SPECIFICATIONS

Model	T90

Specs Options	T90BML-D/T90BMX-D/T90BEL-D/T90BEX-D/T90FEL-T/T90FEX-T
Max. Output Power	90HP(66.2KW)
Transom height	20/25in.
Weight	115-122kg
Max. RPM Range	4500～5500r/min
Idling RPM Range	750～850r/min
Engine Type	L3 Reed Valve
Displacement	1141cc
Bore×Stroke	82.0×72.0mm
Ignition System	CDI
Fuel Iduction System	Carburetor
Steering System	Tiller/Remote Control
Starting System	Manual or Electric
Gear Shift	F-N-R
Gear Ratio	2.0
Trim and Tilt	Gas Assist/Electric
Fuel Tank Capacity	24L
Max. Fuel Consumption	37L/h
Lubrication System	50:1
Gear Oil Capacity	610cc
Propeller Options	3-13" / 15" / 17"

Parameter description:
1. B=Back Control(Tiller handle), F=Front Control(Remote control), M=Manual Start, E=Electric Start, W=Electric Start+Manual Start, L=Long Shaft, X=Extra Long Shift, -D=Gas Assist Tilt, －T＝Electric Tilt

DOWNLOAD

T90 outboard motor owner manual
