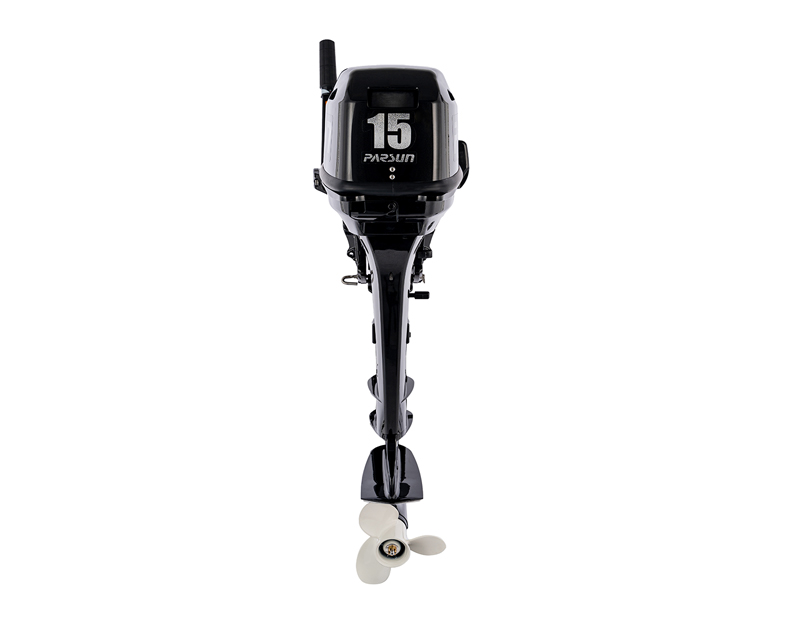

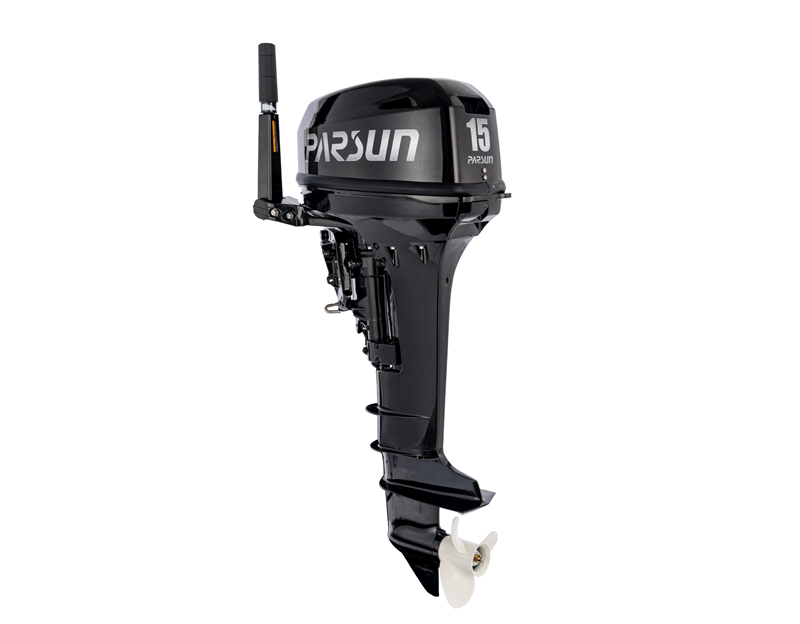

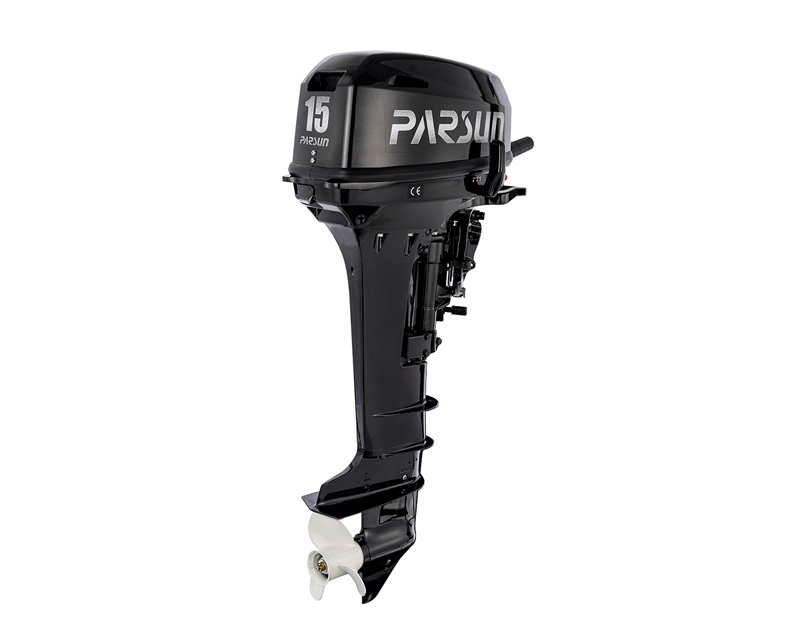

TE15 Outboard Motor

TE15 is a specially improved outboard motor based on market feedback. Compared with similar 15hp outboard motors, TE15 is smaller, taking up less space. Most important is that TE15 is better in quality and reliability and less fuel consumption, so that it is more suitable for commercial use, such as fishing industry. At the same time, the side gear structure is more in line with the usage habits of fishermen.

Category: 2-Stroke Outboards

Previous Product Next Product

SPECIFICATIONS

Model	TE15
Overall Length	T15BMS/T15BML
Transom Height	15in./20in.
Dry Weight	38kg/40Kg
Max. RPM range	4500～5500r/min
Max. Output Power	11kW（15HP）@5000
Idling RPM range	1000～1100 r/min
Engine Type	L2 Reed Valve
Displacement	246cc
Bore X Stroke	56×50 mm
Ignition Timing	CDI
Steering System	Tiller handle
Starting System	Manual start
Gear Shift	F-N-R
Gear Ratio	2.08
Trim &Tilt	Manual tilt
Fuel Tank Capacity	24L
Max. Fuel Consumption	7.7L/h
Gear Oil Capacity	250cc
Mixing Ratio(fuel:oil)	50:1
Propeller	3-8"/10"/11"/12"

Parameter description:
1. B=Back control(Tiller handle), M=Manual starting, S=Short shaft, L=Long shaft

DOWNLOAD

TE15 outboard motor owner manual
