DESCRIPTION
DESCRIPTION

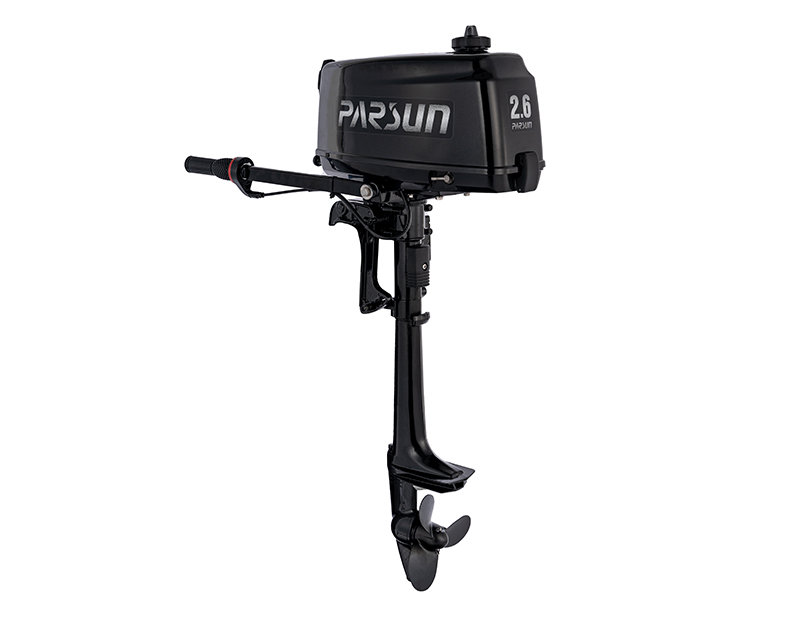

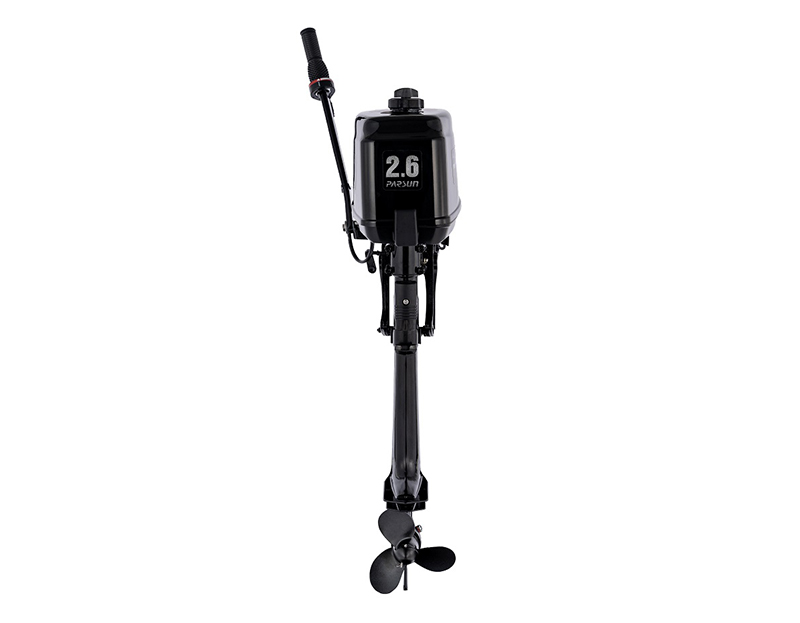

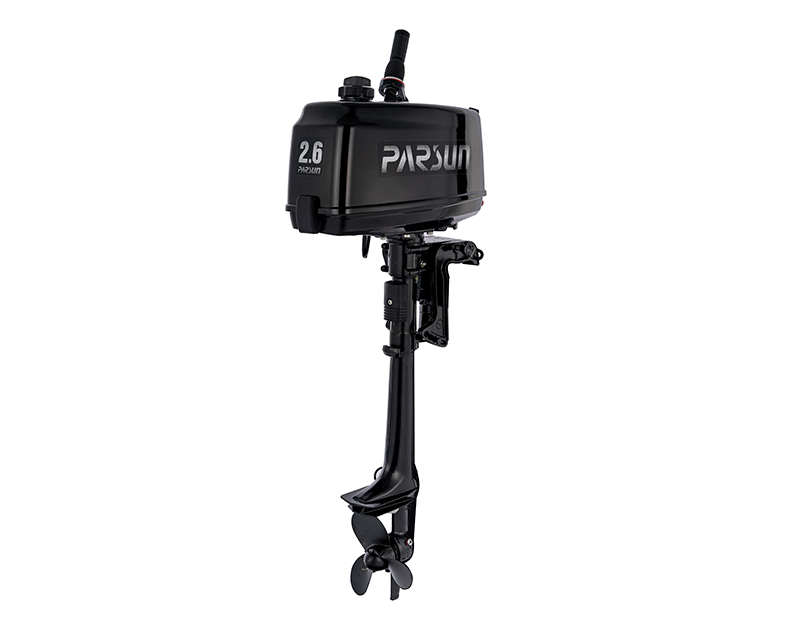

T2.6C is a light weight two-stroke outboard motor, suitable for use on small boats. Targeted for personal recreational use, such as fishing on rivers, swimming in the sea, etc. One hand can pick up, it is so easy.
Category: 2-Stroke Outboards
Features
Portabl & Light & Reliable
1. Two-stroke outboard motor, simple structure, low failure rate.
2. Only 21lb, Light weight outboard motor that easy to carry.
3. TCI ignition, easy to start.
4. Tiller handle, easy to operate.
5. Reliability and durability are its characteristics.
6. The owner will benefit a lot from its easy maintanence and repair.
SPECIFICATIONS
| Model | T2.6C | |
| Overall Length | 604 mm (23.8 in.) | |
| Overall Width | 234 mm(9.2in.) | |
| Overall Height | 920 mm（36.2in.) | |
| Transom Height | 381 mm（15.0in.) | |
| Dry Weight | 9.8Kg | |
| Max. RPM Range | 4000～5000r/min | |
| Max. Out power | 1.9kW（2.6HP）@5000r/min | |
| Idling RPM range | 1100～1200 r/min | |
| Engine Type | 1-cyl | |
| Displacement | 50cc | |
| Bore X Stroke | 42.0×36 mm | |
| Ignition System | TCI | |
| Steering System | Tiller Handle | |
| Starting System | Manual start | |
| Gear Shift | Front | |
| Gear Ratio | 2.08 | |
| Trim &Tilt | Manual | |
| Fuel Tank Capacity | Built-in 1.2L | |
| Max. Fuel Consumption | 1.5L/h | |
| Fuel and Oil Mixing Ratio | 50:1 | |
| Gear Oil Capacity | 45cc | |
| Propeller* | 3-5" | |
| Specs Option | T2.6CBMS | |
Parameter Description:
The initial letter "T" means "Two Stroke".
B=Back Control (Tiller handle), M=Manual start, S=Short shaft
