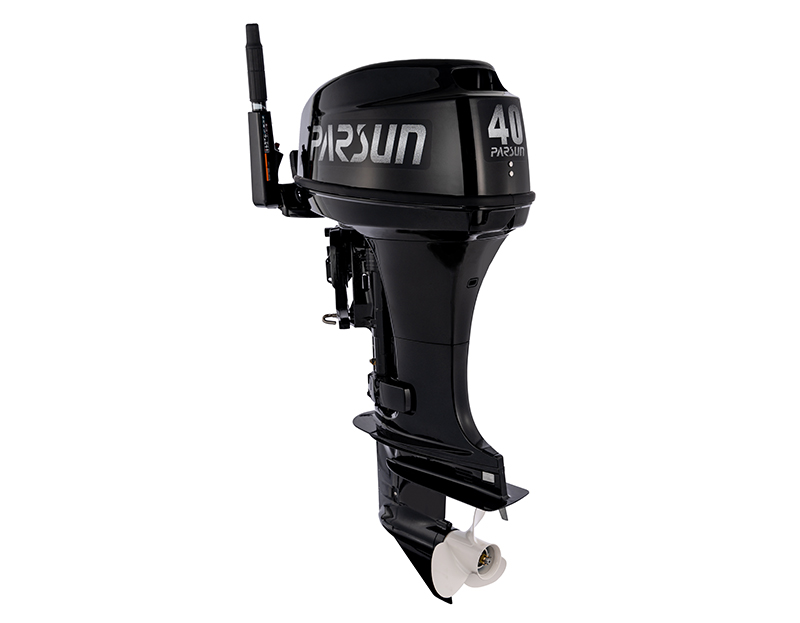

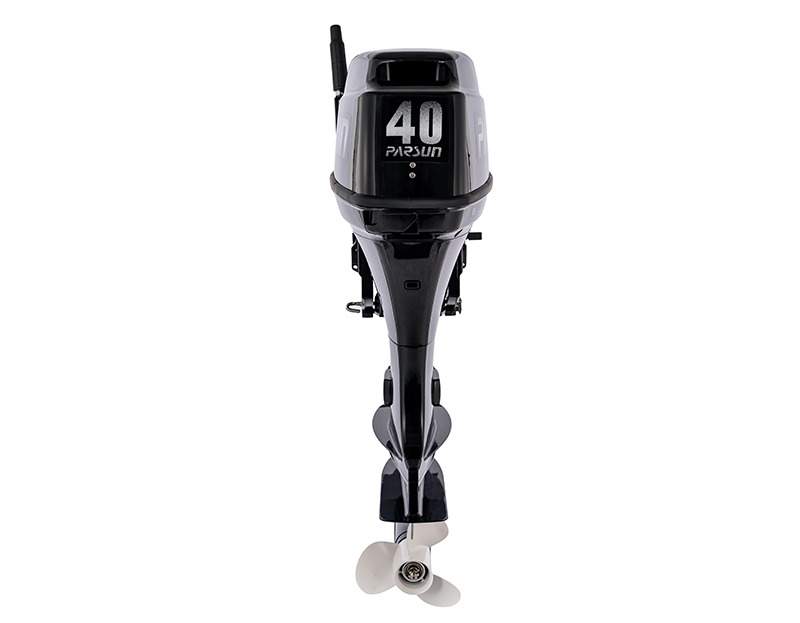

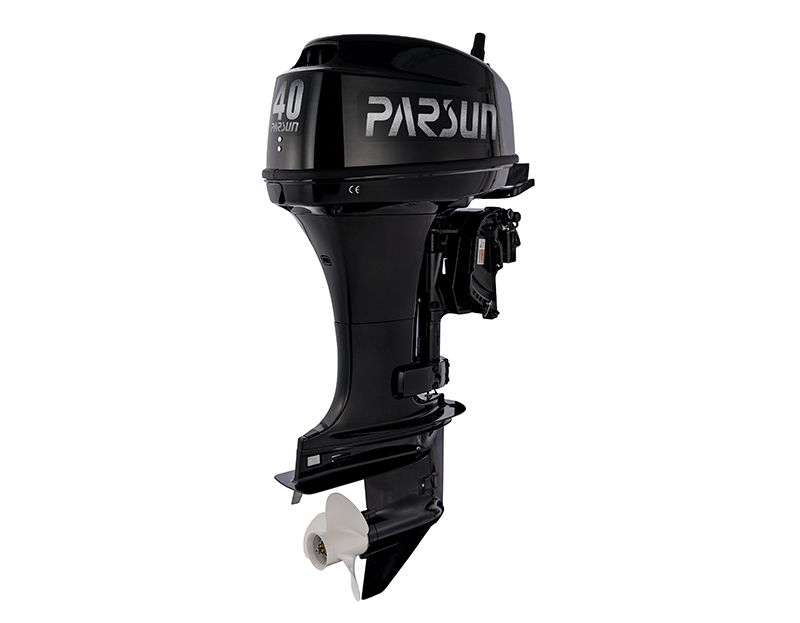

T40 Outboard Motor

T40, as a new model, is a medium horsepower two-stroke outboard motor with superb performance stability. Simple structure, flexible maneuvering and easy to use, the T40 is suitable for fishery industry and also for going to the water for surfing because of good explosiveness and acceleration. In the same 40hp class, T40 has a larger displacement and stronger under-water propulsion which make T40 more powerful and higher loading capacity.

Category: 2-Stroke Outboards

Previous Product Next Product

SPECIFICATIONS

Model	T40
Specs Options	T40BMS/T40BML/T40FWS/T40FWL/T40BWS/T40BWL/T40FWS-T/T40FWL-T
Transom Height	15in./20in.
Dry Weight	73.5-81.7Kg
Max. RPM range	4500～5500r/min
Max. outpower	29.4kW（40HP）@5000r/min
Idling RPM range	950～1050 r/min
Engine Type	L2 Reed Valve
Displacement	703c
Bore X Stroke	80×70 mm
Ignition Timing	CDI
Steering System	Tiller handle/Remote control
Starting System	Manual start/electric start
Gear Shift	F-N-R
Gear Ratio	2.0
Trim &Tilt	Manual tilt /Electric
Fuel Tank Capacity	24L
Max. Fuel Consumption	20L/h
Gear Oil Capacity	430cc
Lubrication System	50:1(Fuel:Oil)
Propeller*	3-12"/13"

Parameter description:
1. Propeller should be selected in terms of the size of boats.
2. B=Back Control(Tiller handle), M=Manual start, E=Electric start, S=Short shaft, L=Long shaift, W=Manual start and electric start -T=Electric tilt
