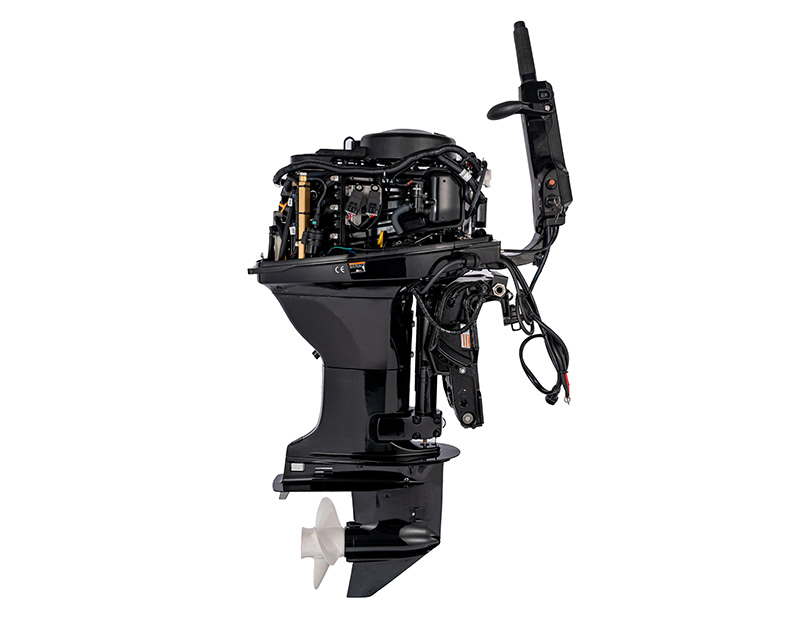

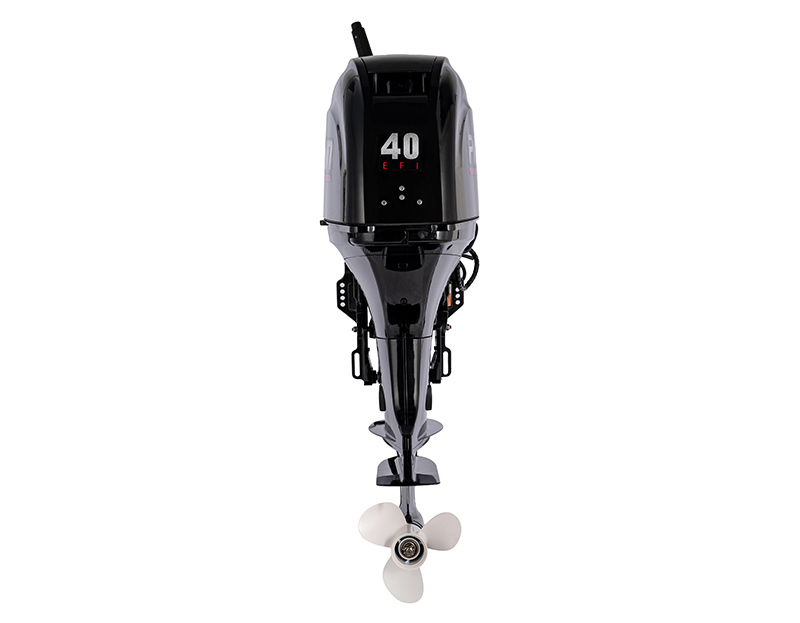

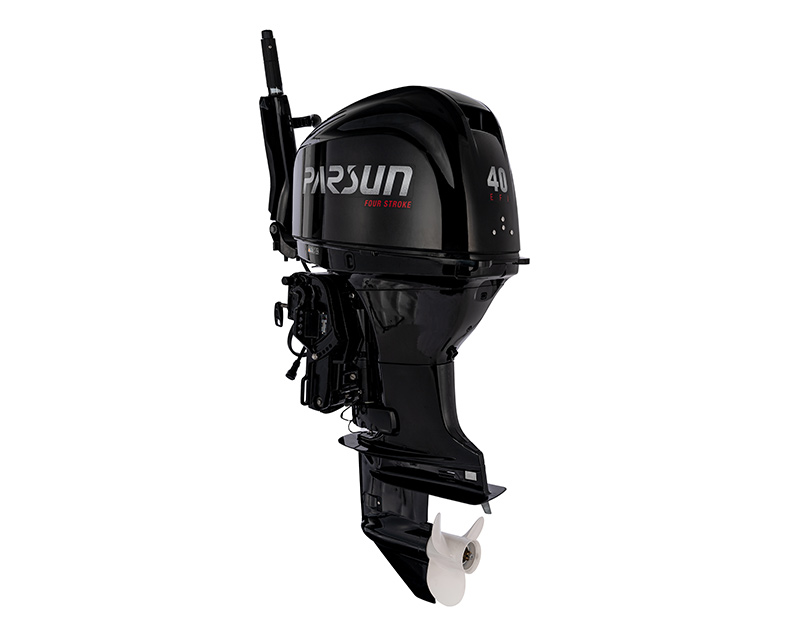

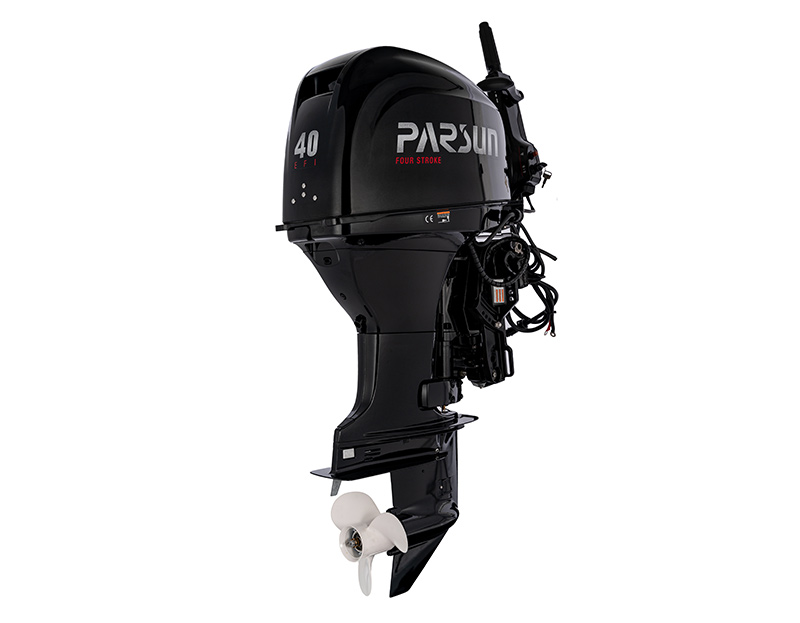

F40 EFI Outboard Motor

The F40 is an entry-level middle horsepower 4-stroke 40hp outboard motor. It adopts the latest ECU-controlled EFI technology and has made great strides in overall performance. Whether used for personal recreation, commercial use, or fishing, the F40 outboard motor can provide users with a exhilarating power experience.

Category: 4-Stroke Outboards

Previous Product Next Product

FEATURES

4. Several different sensors continually monitor the critical engine’s major functions. They will send out special signals to inform you in advance, such as over-revving, overheating, or low oil pressure, and automatically reduce the engine power to prevent damage.
5. Large displacement and single overhead cam increase the low-end power with smooth and strong performance, and help the operator get excellent acceleration even when pushing a heavy load.

SPECIFICATIONS

Model	F40
Specs Options	F40BES-D/F40BEL-D/F40BES-T/F40BEL-T/F40FES-T/F40FEL-T
Max.Power	40HP(29.4KW)
Transom Height	15/20in.
Dry Weight	99.9-103kg
Full Rpm Range	5000～6000r/min
Idling Rpm Range	850-950r/min
Engine Type	3-cyl. SOHC
Fuel Induction Sysem	EFI
Displacement	747cc
Bore * Stroke	65.0×75.0mm
Ignition System	CDI
Steering System	Tiller/remote
Starting System	Manual start/Electric start
Gear Shift	F-N-R
Gear Ratio	2.0
Trim And Tilt	Gas assist(-D)/Electric(-T)
Fuel Tank Capacity	24L
Max. Fuel Consumption	13.8L/h
Engine Oil Capacity	1.7L
Gear Oil Capacity	430cc
Propeller Options	3-12"/13"

Specs description:

The "F" of "F40" means "4-stroke".
The letters after F40 means:
B=Back control(tiller) M=Manual start F=Front control ( remote control ) S=Short shaft L=Long shaft -D=Power tilt & trim -T=Electric tilt & trim
