Diesel
4-Stroke 100HP
Powerful, reliable, and built for adventure, the F85–F130 series is the ideal outboard solution for larger boats. Featuring electric start, power trim & tilt, and a remote control system, these engines deliver smooth operation, responsive handling, and outstanding performance on every trip. Whether you're fishing offshore, cruising with family, or exploring new waters, the F85–F130 series provides the confidence and power to go further.
- Features & Benefits
- Performance Bulletins
- Specifications
- Accessories
- Related models
- Showcases
Features & Benefits
-
Electronic Fuel Injection (EFI)
The ECM controlled multi-point electronic fuel injection system precisely measures the fuel and injects it into the combustion chamber at the optimum timing to increase performance and assure quick engine start in various environmental conditions such as temperature, and after long storage periods，whether you're cruising, fishing, or pushing for maximum performance, EFI ensures responsive power and reliable operation in every condition.
-
Superior Anti-Corrosion Capability
The F85–F130 series delivers exceptional saltwater protection. Built with proven marine-grade aluminum alloys, premium stainless-steel components, and an advanced five-layer coating system, PARSUN outboards are engineered for outstanding durability in both freshwater and saltwater environments. Multiple strategically placed sacrificial anodes provide additional corrosion defense, ensuring long-term reliability and extended engine life.
-
Compact & Efficient Powerhead
Powered by advanced PARSUN engine technology, the F85–F130 series features an ECM-controlled Multi-Point Electronic Fuel Injection (EFI) system and a Double Overhead Camshaft (DOHC) design. This combination delivers strong, responsive power while keeping the powerhead compact, lightweight, and highly efficient.
-

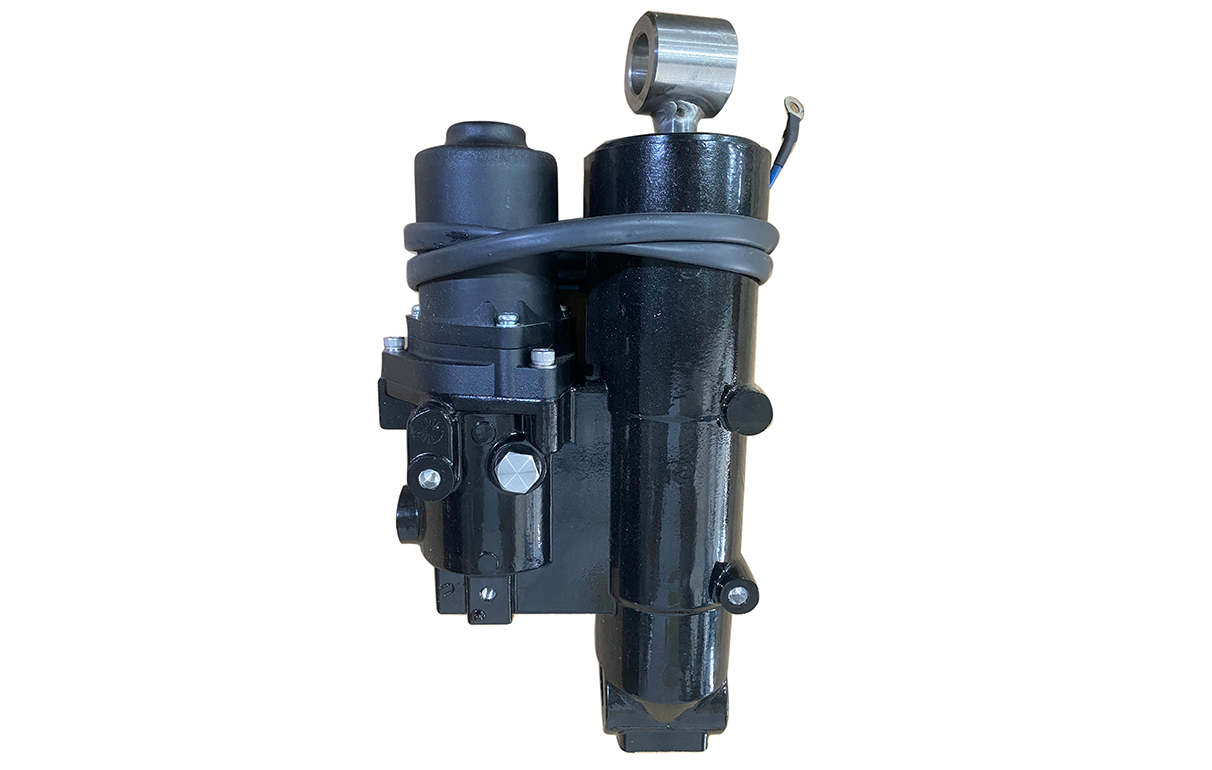

Available Power Tilt and Trim
Easy to stow, easy to control. Power tilt and trim lets you adjust the running attitude with the push of a button. A major advantage for small vessels and heavy loads
Specification
-
F100FEL-T-EFI
-
F100FEX-T-EFI
-
F100FEL-T-EFI-L
-
F100FEX-T-EFI-L
-
Max. Output Power(HP/KW)
-
Transom Height(in.)
-
Engine Type
-
Displacement(cc)
-
Bore*Stroke(mm)
-
Ignition System
-
Max. RPM Range(r/min)
-
Idling RPM Range(r/min)
-
Fuel Injection System
-
Steering System
-
Starting System
-
Gear Shift
-
Gear Ratio
-
Trim and Tilt System
-
Engine Oil Capacity(L)
-
Max. Fuel Consumption (L/H@5500rpm)
-
Engine Oil Capacity (L)
-
Gear Oil Capacity(cc)
-
Max charging（A）
-
Propeller Options(in.)
-
Weight(KG)
-
Certificate
-
-
Max. Output Power(HP/KW)115HP(84.6kW)
-
Transom Height(in.)20/25
-
Engine TypeL4DOHC
-
Displacement(cc)1832
-
Bore*Stroke(mm)81.0*88.9
-
Ignition SystemT.C.I
-
Max. RPM Range(r/min)5300-6300
-
Idling RPM Range(r/min)800-900
-
Fuel Injection SystemEFI
-
Steering SystemRemote Control
-
Starting SystemElectric
-
Gear ShiftF-N-R
-
Gear Ratio2.15
-
Trim and Tilt SystemElectric
-
Engine Oil Capacity(L)
-
Max. Fuel Consumption (L/H@5500rpm)38.9
-
Engine Oil Capacity (L)3.0
-
Gear Oil Capacity(cc)CW：760 CCW：715
-
Max charging（A）12V,27A
-
Propeller Options(in.)3-131/4"x17" or 3-131/2"x15"
-
Weight(KG)181-185
-
CertificateCE/CCS/EPA
-
-
-
Max. Output Power(HP/KW)100HP(73.5kW)
-
Transom Height(in.)20/25
-
Engine TypeL4DOHC
-
Displacement(cc)1832
-
Bore*Stroke(mm)81.0*88.9
-
Ignition SystemT.C.I
-
Max. RPM Range(r/min)5300-6300
-
Idling RPM Range(r/min)800-900
-
Fuel Injection SystemEFI
-
Steering SystemRemote Control
-
Starting SystemElectric
-
Gear ShiftF-N-R
-
Gear Ratio2.15
-
Trim and Tilt SystemElectric
-
Engine Oil Capacity(L)
-
Max. Fuel Consumption (L/H@5500rpm)33.9
-
Engine Oil Capacity (L)3.0
-
Gear Oil Capacity(cc)CW：760 CCW：715
-
Max charging（A）12V,27A
-
Propeller Options(in.)3-131/4"x17" or 3-131/2"x15"
-
Weight(KG)181-185
-
CertificateCE/CCS/EPA
-
-
-
Max. Output Power(HP/KW)100HP(73.5kW)
-
Transom Height(in.)20/25
-
Engine TypeL4DOHC
-
Displacement(cc)1832
-
Bore*Stroke(mm)81.0*88.9
-
Ignition SystemT.C.I
-
Max. RPM Range(r/min)5300-6300
-
Idling RPM Range(r/min)800-900
-
Fuel Injection SystemEFI
-
Steering SystemRemote Control
-
Starting SystemElectric
-
Gear ShiftF-N-R
-
Gear Ratio2.15
-
Trim and Tilt SystemElectric
-
Engine Oil Capacity(L)
-
Max. Fuel Consumption (L/H@5500rpm)33.9
-
Engine Oil Capacity (L)3.0
-
Gear Oil Capacity(cc)CW：760 CCW：715
-
Max charging（A）12V,27A
-
Propeller Options(in.)3-131/4"x17" or 3-131/2"x15"
-
Weight(KG)181-185
-
CertificateCE/CCS/EPA
-
-
-
Max. Output Power(HP/KW)100HP(73.5kW)
-
Transom Height(in.)20/25
-
Engine TypeL4DOHC
-
Displacement(cc)1832
-
Bore*Stroke(mm)81.0*88.9
-
Ignition SystemT.C.I
-
Max. RPM Range(r/min)5300-6300
-
Idling RPM Range(r/min)800-900
-
Fuel Injection SystemEFI
-
Steering SystemRemote Control
-
Starting SystemElectric
-
Gear ShiftF-N-R
-
Gear Ratio2.15
-
Trim and Tilt SystemElectric
-
Engine Oil Capacity(L)
-
Max. Fuel Consumption (L/H@5500rpm)33.9
-
Engine Oil Capacity (L)3.0
-
Gear Oil Capacity(cc)CW：760 CCW：715
-
Max charging（A）12V,27A
-
Propeller Options(in.)3-131/4"x17" or 3-131/2"x15"
-
Weight(KG)181-185
-
CertificateCE/CCS/EPA
-
Explore All
Accessories
-
Multifunctional Touchscreen
10-inch multifunctional touchscreen, allowing users to quickly and clearly monitor the machine’s operating status.
-
Electronic Shift
•Ergonomic Design •Precision Tilt Control •Versatile Multi-Unit Integration •Smart Push-Button Ignition
-
Stainless steel propellers
Stainless steel propellers available in multiple sizes
-
Optional hydraulic or electronic power-assisted steering system
