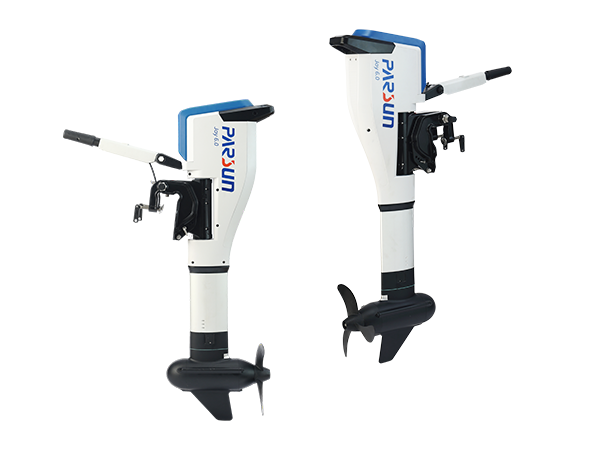

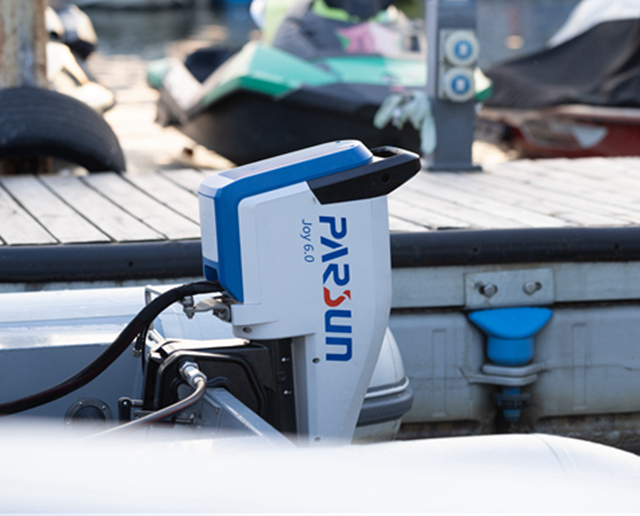

Joy 6.0 Electric Outboard Motor

6kW Equivalent 9.9HP PMSM

Home > Products > Electric Outboards > Joy 6.0 Electric Outboard Motor

Innovative Electric Motor

Joy 6.0 is the latest innovative electric outboard motor of Parsun boat motor family, featuring with quiet running, zero emission, maintenance free and easy driving. With 6kW input power, efficient water-cooling system, Joy 6.0 is suitable to inflatable boats, aluminum boats, pontoon boats and other boats under 20 feet.

Take a Water Tour with Joy 6.0

Speed & Range

Power(Watt)	Speed(mph / kph)	Running Time (hh:mm)	Range(mile/km)
1000	4.9 / 7.9	8:57	44.0 / 70.8
2000	5.3 / 8.5	4:42	24.7 / 39.7
3000	5.5 / 8.8	3:17	17.7 / 28.5
4000	6.6 / 10.6	2:45	15.4 / 24.8
5000	7.5 / 12.0	2:26	15.7 / 25.2
6000	8.0 / 13.0	2:14	14.7 / 23.7

Notice: The performance data is based on a 4.2m inflatbable boat with one person, powered by one Joy 6.0FL with one 175Ah battery in calm river water.

Tremendous Performance

Born with high performance, destined to be extraordinary.

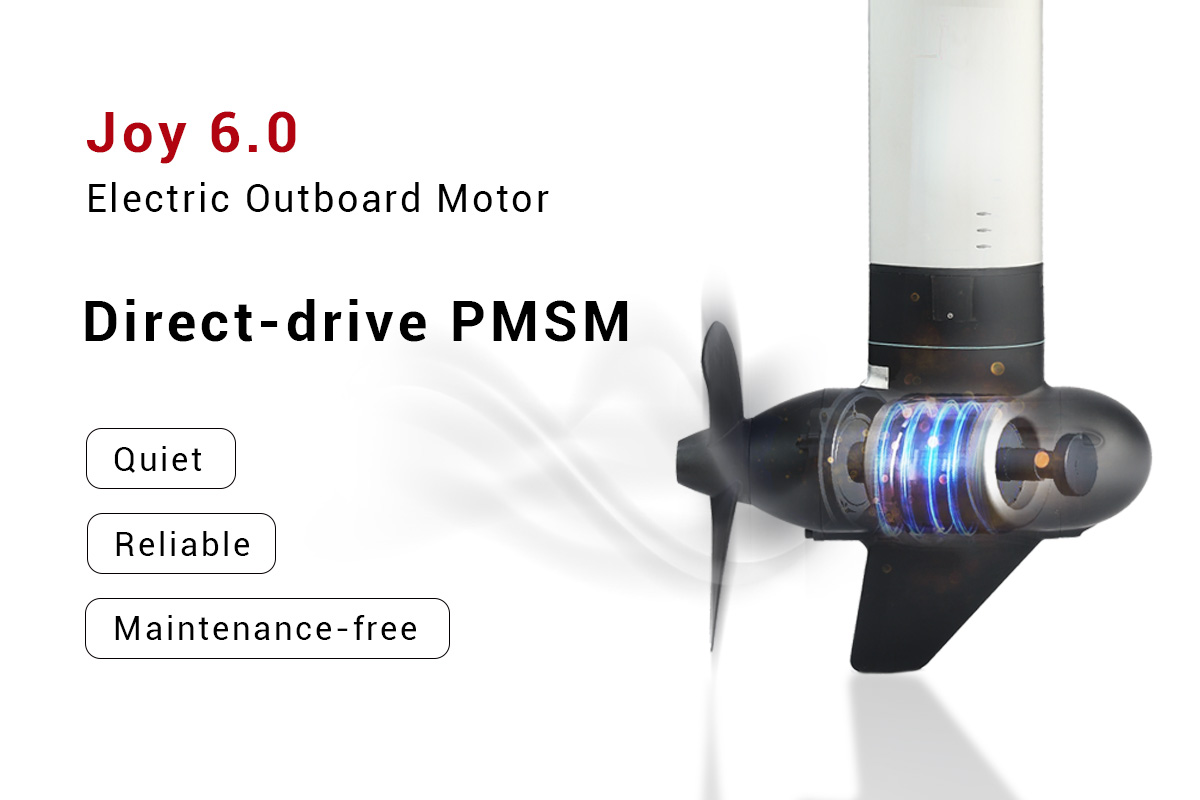

PMSM with Direct Drive

Thanks to direct drive technology, Joy 6.0 is powerful, efficient, quiet and maintenance free in running.

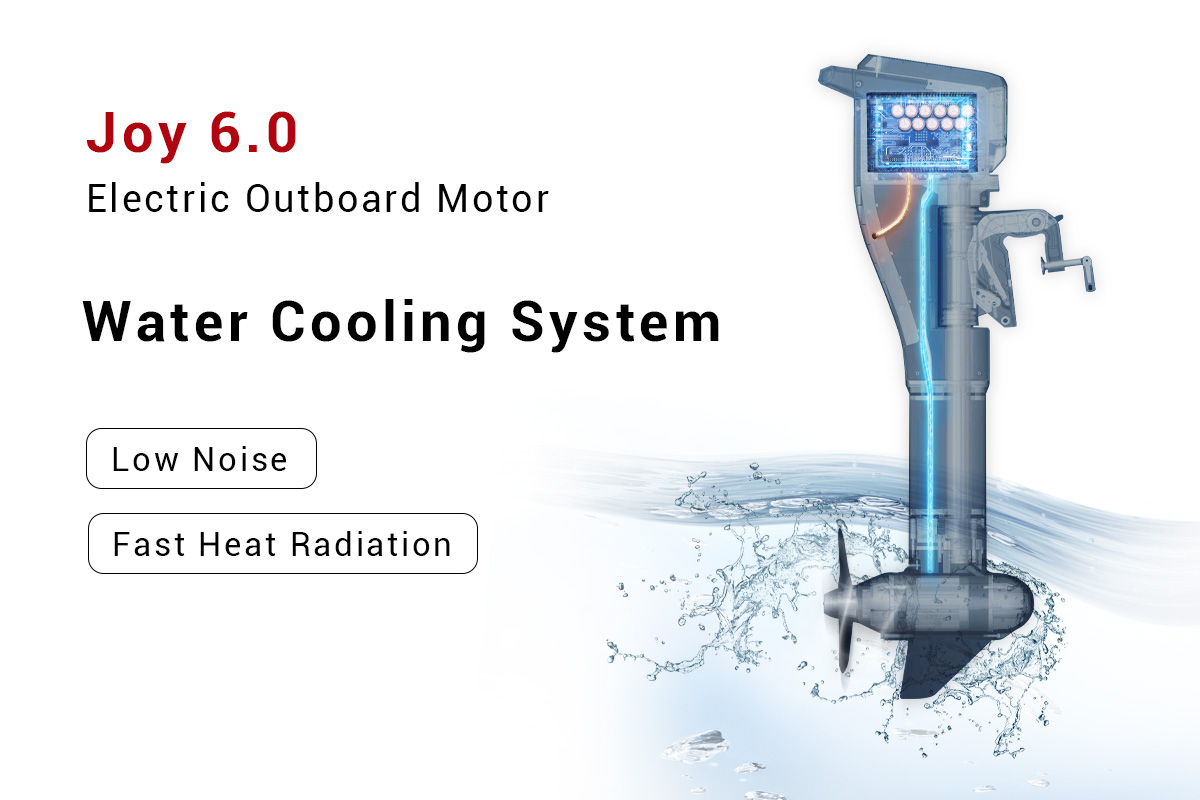

Water-Cooling System

Efficient water-cooling system ensures stable performance output, whether in sea water or fresh water.

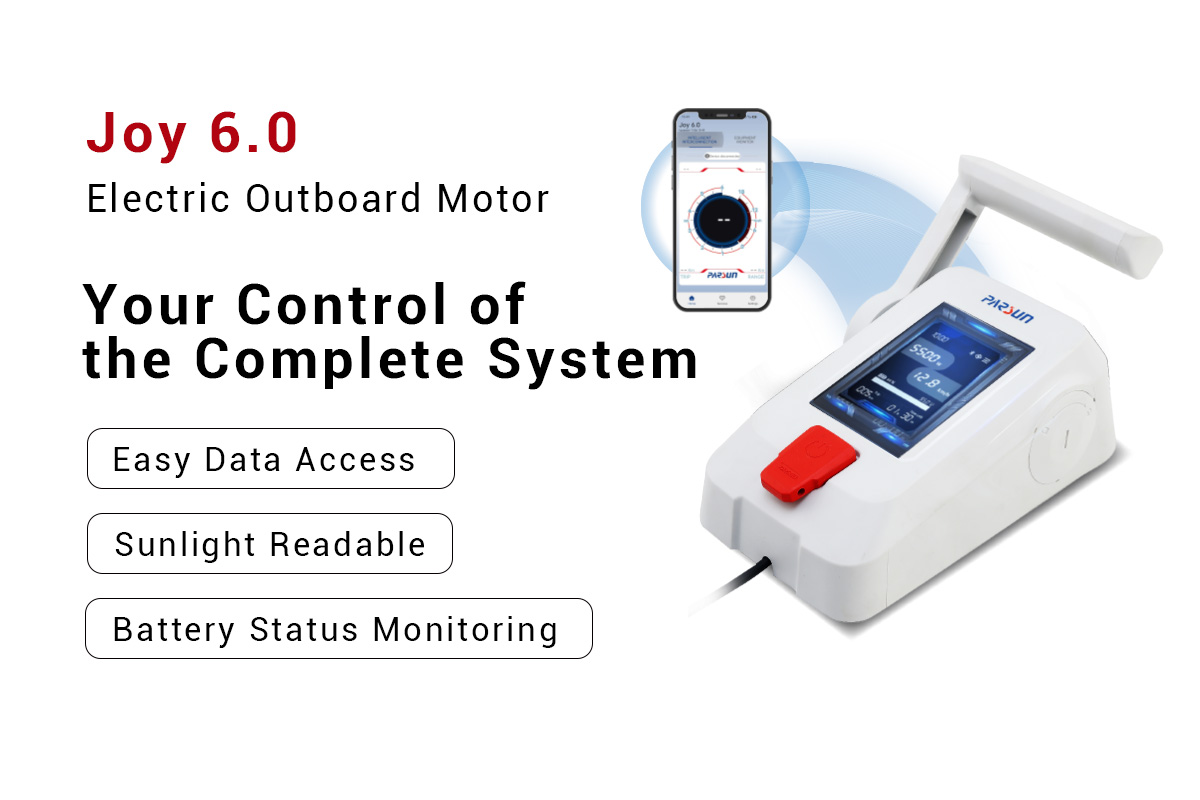

Easy Driving

Joy 6.0 offers a visual digital touch display panel both for the models with a tiller and the remote-control models.

Multi-function Display

Display Data Includes:

Time
GPS Signal
Power
Boat Speed
Battery Voltage
Bluetooth Signal
Battery SOC
One Trip Range
Time Left
Fault Codes (if happens)

Setting Functions:

Display Brightness
Time Zone
Range Unit
Display Language
Battery Type
Forward Max Power
Reverse Max Power

SEPECIFICATIONS

Model	Joy 6.0
Steering system	Tiller handle/remote control
Rated power	6kW
Motor efficiency	≥80%
Rated rpm	1550rpm
Drive motor	PMSM with direct drive
Rated voltage	48V DC
Battery capacity	175Ah/80Ah
Water proof	IP67
Overall height	1338mm(L)/1211mm(S)
Shaft length	570mm(L)/433mm(S)
Size（length*width）	558x284x1338mm (L)
Propeller	3 blades, 340*174mm
Trim/tilt angle	0°、4°、8°、12°/60°
Battery position	External
GPS	Yes

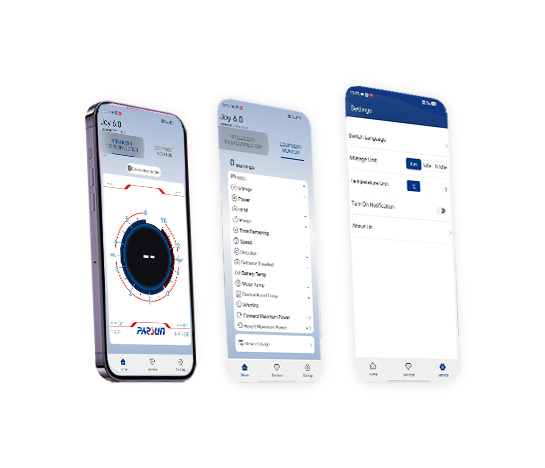

Bluetooth APP	Yes
Weight（L）	35kg (without battery)

WHAT'S IN THE BOX?

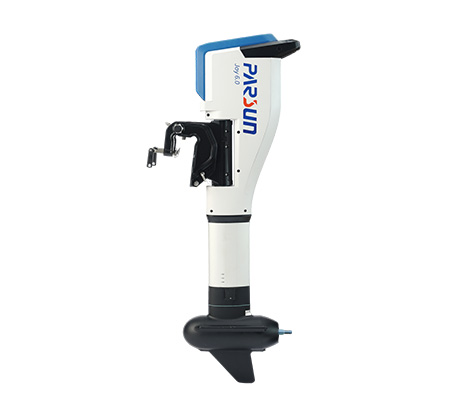

Main Motor

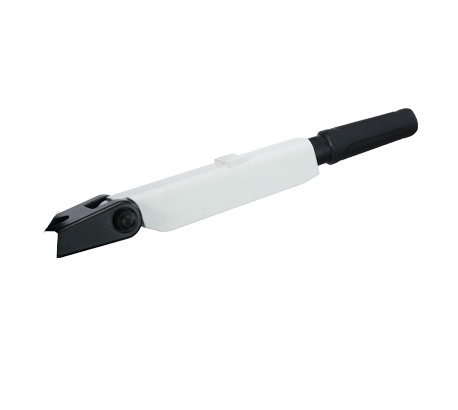

Tiller

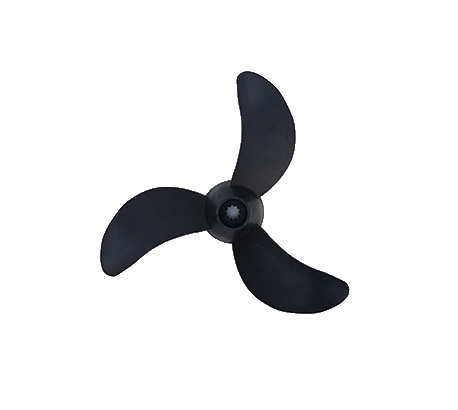

Propeller

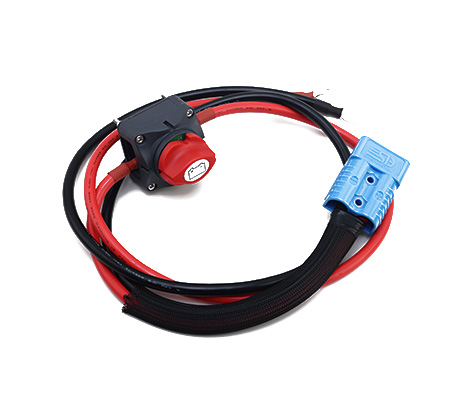

Harness

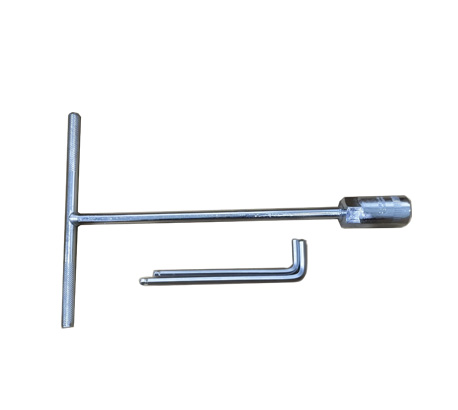

Tool

User Manual
