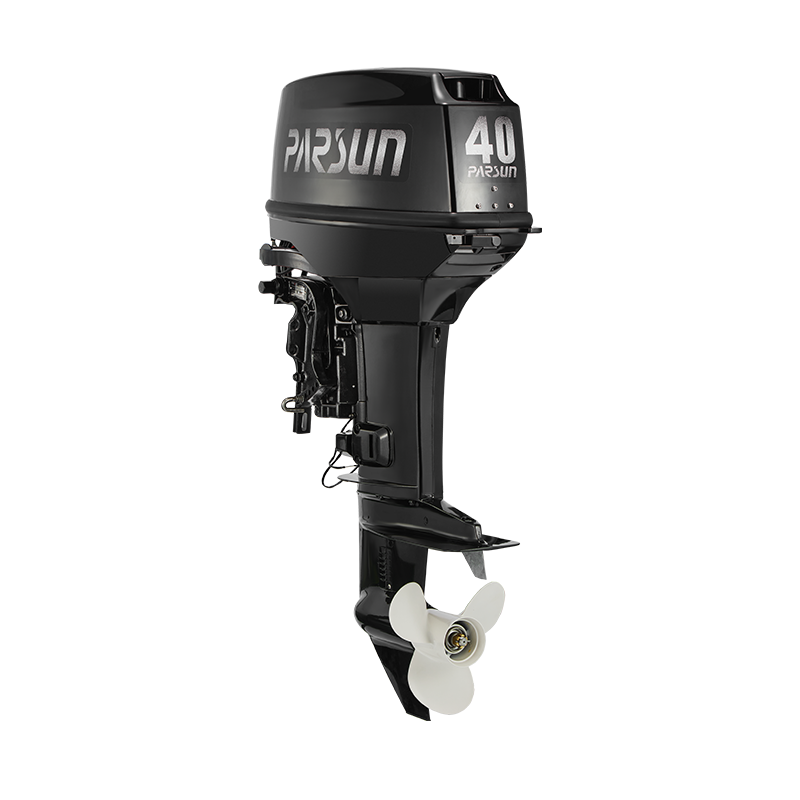

  • T40JFWL-8.png

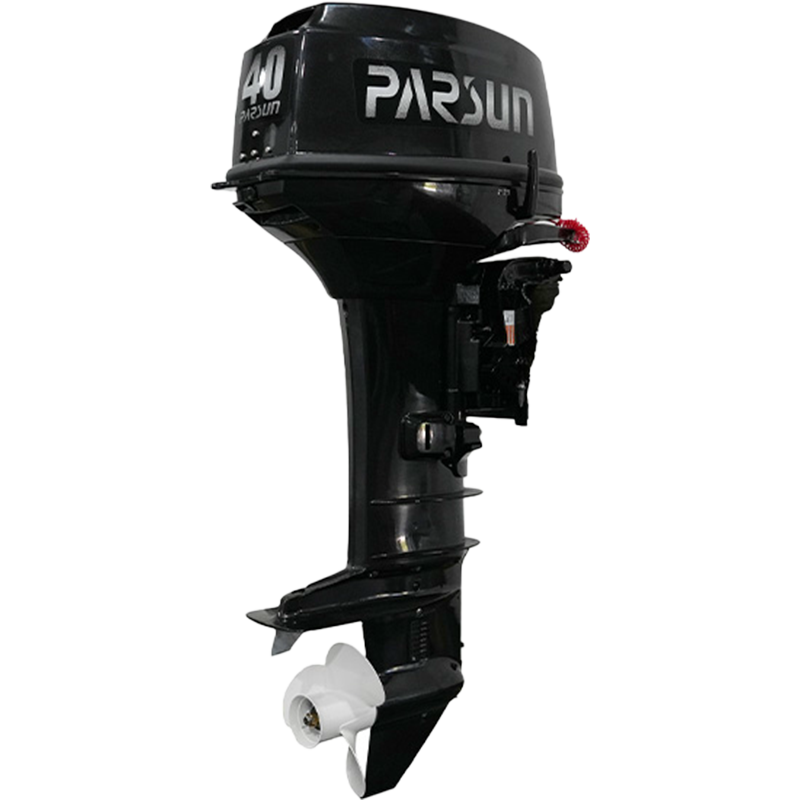

  • 40-1-8.png

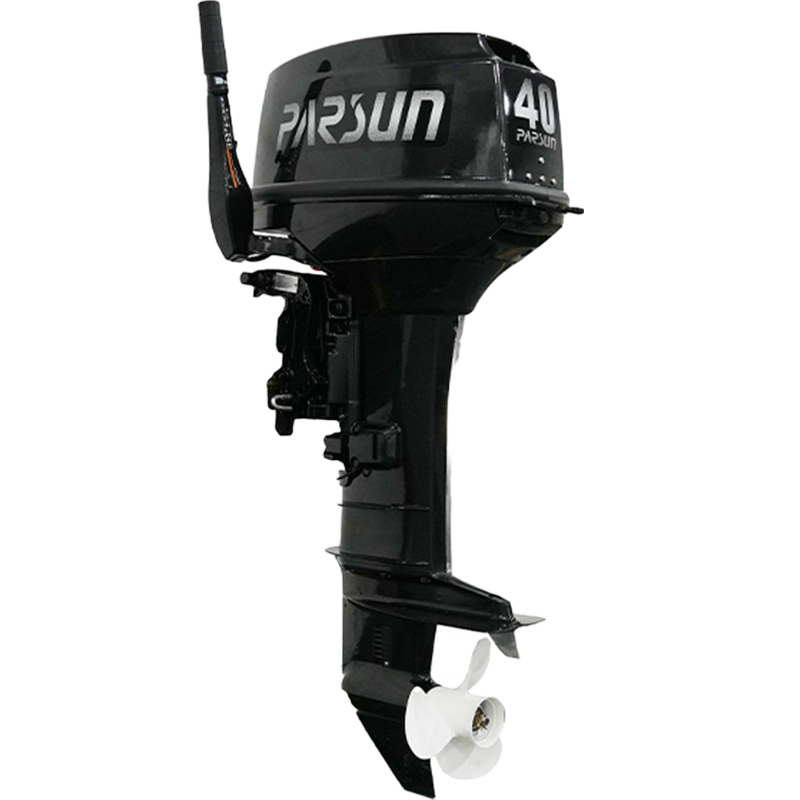

  • 40-2-8.png

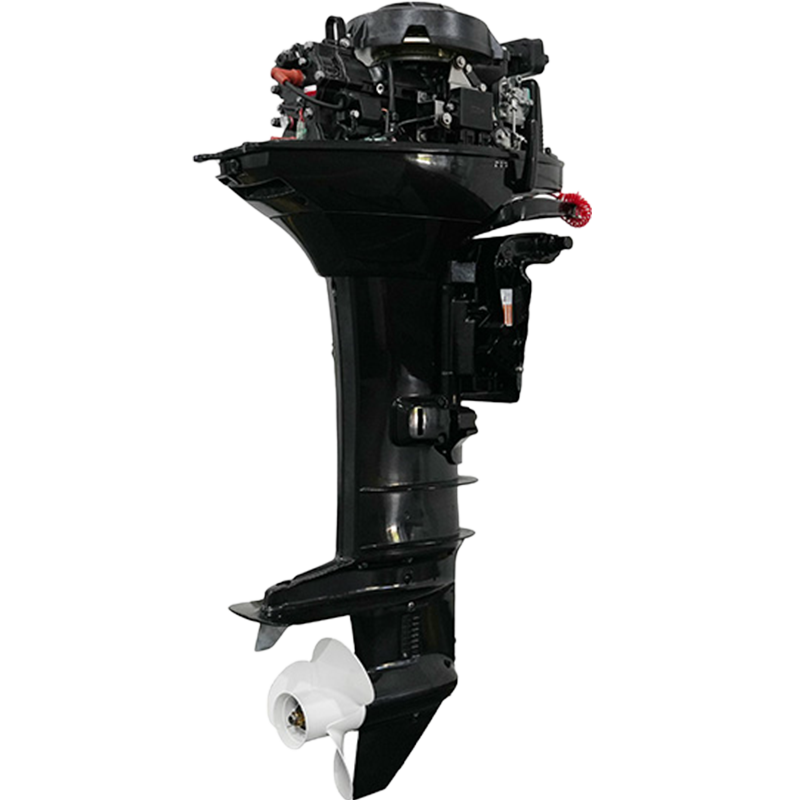

  • 40-3-8.png
  • T40JBWL-14.png
  • T40JFWL-14.png
  • 40-1-14.png
  • 40-2-14.png
  • 40-3-14.png

2-Stroke 40JHP

The T20-T40 Series two-stroke outboards are mid-range powerhouses engineered for the harshest marine environments. Built to withstand long hours of continuous operation and daily heavy-duty use, they deliver proven reliability, exceptional durability, and outstanding cost-effectiveness — making them a trusted favorite among professional fishermen worldwide.

  • Features & Benefits
  • Performance Bulletins
  • Specifications
  • Showcases

Find a Dealer

Features & Benefits

Specification

Models
  • T40JBMS
  • T40JBML
  • T40JFWS
  • T40JFWL
  • T40JBWS
  • T40JBWL
  • Max. Output Power(HP/KW)
  • Transom Height(in.)
  • Engine Type
  • Displacement(cc)
  • Bore*Stroke(mm)
  • Ignition System
  • Max. RPM Range(r/min)
  • Idling RPM Range(r/min)
  • Fuel Injection System
  • Steering System
  • Starting System
  • Gear Shift
  • Gear Ratio
  • Trim and Tilt System
  • Fuel Tank(L)
  • Max. Fuel Consumption(L/H)
  • Lubrication system (gasoline: oil)
  • Gear Oil Capacity(cc)
  • Max charging(A)
  • Propeller Options(in.)
  • Weight(KG)
  • Certificate
  • 40-1-15.png
    • Max. Output Power(HP/KW)
      40HP(29.4kW)
    • Transom Height(in.)
      15/20
    • Engine Type
      L2
    • Displacement(cc)
      669
    • Bore*Stroke(mm)
      78.0*70.0
    • Ignition System
      C.D.I
    • Max. RPM Range(r/min)
      4500-5500
    • Idling RPM Range(r/min)
      1100-1200
    • Fuel Injection System
      Carburetor
    • Steering System
      Tiller/Remote Control
    • Starting System
      Manual/Electric
    • Gear Shift
      F-N-R
    • Gear Ratio
      2
    • Trim and Tilt System
      Manual
    • Fuel Tank(L)
      24
    • Max. Fuel Consumption(L/H)
      20
    • Lubrication system (gasoline: oil)
      50:1
    • Gear Oil Capacity(cc)
      315
    • Max charging(A)
      12V;7A
    • Propeller Options(in.)
      3-113/8"x12" or 3-111/8"x13"
    • Weight(KG)
      65-68.5
    • Certificate
      CE/CCS/EPA
  • 40-2-15.png
    • Max. Output Power(HP/KW)
      40HP(29.4kW)
    • Transom Height(in.)
      15/20
    • Engine Type
      L2
    • Displacement(cc)
      669
    • Bore*Stroke(mm)
      78.0*70.0
    • Ignition System
      C.D.I
    • Max. RPM Range(r/min)
      4500-5500
    • Idling RPM Range(r/min)
      1100-1200
    • Fuel Injection System
      Carburetor
    • Steering System
      Tiller/Remote Control
    • Starting System
      Manual/Electric
    • Gear Shift
      F-N-R
    • Gear Ratio
      2
    • Trim and Tilt System
      Manual
    • Fuel Tank(L)
      24
    • Max. Fuel Consumption(L/H)
      20
    • Lubrication system (gasoline: oil)
      50:1
    • Gear Oil Capacity(cc)
      315
    • Max charging(A)
      12V;7A
    • Propeller Options(in.)
      3-113/8"x12" or 3-111/8"x13"
    • Weight(KG)
      65-68.5
    • Certificate
      CE/CCS/EPA
  • 40-3-15.png
    • Max. Output Power(HP/KW)
      40HP(29.4kW)
    • Transom Height(in.)
      15/20
    • Engine Type
      L2
    • Displacement(cc)
      669
    • Bore*Stroke(mm)
      78.0*70.0
    • Ignition System
      C.D.I
    • Max. RPM Range(r/min)
      4500-5500
    • Idling RPM Range(r/min)
      1100-1200
    • Fuel Injection System
      Carburetor
    • Steering System
      Tiller/Remote Control
    • Starting System
      Manual/Electric
    • Gear Shift
      F-N-R
    • Gear Ratio
      2
    • Trim and Tilt System
      Manual
    • Fuel Tank(L)
      24
    • Max. Fuel Consumption(L/H)
      20
    • Lubrication system (gasoline: oil)
      50:1
    • Gear Oil Capacity(cc)
      315
    • Max charging(A)
      12V;7A
    • Propeller Options(in.)
      3-113/8"x12" or 3-111/8"x13"
    • Weight(KG)
      65-68.5
    • Certificate
      CE/CCS/EPA
  • T40JFWL-15.png
    • Max. Output Power(HP/KW)
      40HP(29.4kW)
    • Transom Height(in.)
      15/20
    • Engine Type
      L2
    • Displacement(cc)
      669
    • Bore*Stroke(mm)
      78.0*70.0
    • Ignition System
      C.D.I
    • Max. RPM Range(r/min)
      4500-5500
    • Idling RPM Range(r/min)
      1100-1200
    • Fuel Injection System
      Carburetor
    • Steering System
      Tiller/Remote Control
    • Starting System
      Manual/Electric
    • Gear Shift
      F-N-R
    • Gear Ratio
      2
    • Trim and Tilt System
      Manual
    • Fuel Tank(L)
      24
    • Max. Fuel Consumption(L/H)
      20
    • Lubrication system (gasoline: oil)
      50:1
    • Gear Oil Capacity(cc)
      315
    • Max charging(A)
      12V;7A
    • Propeller Options(in.)
      3-113/8"x12" or 3-111/8"x13"
    • Weight(KG)
      65-68.5
    • Certificate
      CE/CCS/EPA
  • 40-2-15.png
    • Max. Output Power(HP/KW)
      40HP(29.4kW)
    • Transom Height(in.)
      15/20
    • Engine Type
      L2
    • Displacement(cc)
      669
    • Bore*Stroke(mm)
      78.0*70.0
    • Ignition System
      C.D.I
    • Max. RPM Range(r/min)
      4500-5500
    • Idling RPM Range(r/min)
      1100-1200
    • Fuel Injection System
      Carburetor
    • Steering System
      Tiller/Remote Control
    • Starting System
      Manual/Electric
    • Gear Shift
      F-N-R
    • Gear Ratio
      2
    • Trim and Tilt System
      Manual
    • Fuel Tank(L)
      24
    • Max. Fuel Consumption(L/H)
      20
    • Lubrication system (gasoline: oil)
      50:1
    • Gear Oil Capacity(cc)
      315
    • Max charging(A)
      12V;7A
    • Propeller Options(in.)
      3-113/8"x12" or 3-111/8"x13"
    • Weight(KG)
      65-68.5
    • Certificate
      CE/CCS/EPA
  • T40JBWL-15.png
    • Max. Output Power(HP/KW)
      40HP(29.4kW)
    • Transom Height(in.)
      15/20
    • Engine Type
      L2
    • Displacement(cc)
      669
    • Bore*Stroke(mm)
      78.0*70.0
    • Ignition System
      C.D.I
    • Max. RPM Range(r/min)
      4500-5500
    • Idling RPM Range(r/min)
      1100-1200
    • Fuel Injection System
      Carburetor
    • Steering System
      Tiller/Remote Control
    • Starting System
      Manual/Electric
    • Gear Shift
      F-N-R
    • Gear Ratio
      2
    • Trim and Tilt System
      Manual
    • Fuel Tank(L)
      24
    • Max. Fuel Consumption(L/H)
      20
    • Lubrication system (gasoline: oil)
      50:1
    • Gear Oil Capacity(cc)
      315
    • Max charging(A)
      12V;7A
    • Propeller Options(in.)
      3-113/8"x12" or 3-111/8"x13"
    • Weight(KG)
      65-68.5
    • Certificate
      CE/CCS/EPA
