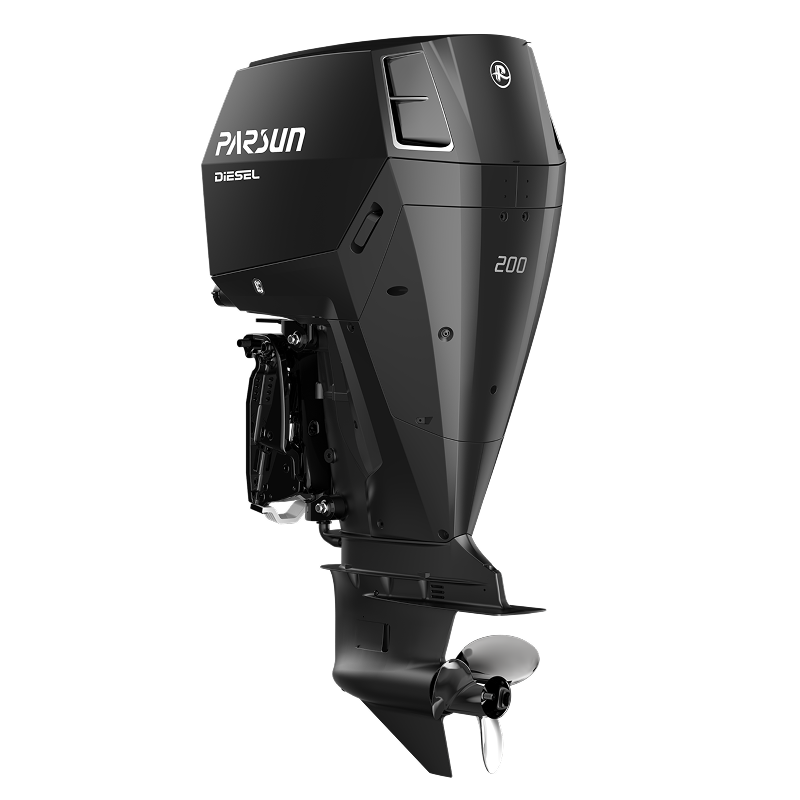

Diesel 200HP

2.0L L4

By successfully filling the technological gap in high-power diesel outboards, the D200 has achieved CCS certification and set a new industry benchmark. Boasting outstanding fuel efficiency, powerful performance, and proven reliability, it is the perfect choice for commercial marine operations — from fishing and passenger transport to freight and patrol missions.

  • Features & Benefits
  • Performance Bulletins
  • Specifications
  • Showcases

Find a Dealer

Features & Benefits

  • ChatGPT Image 2026年7月24日 10_12_07.png

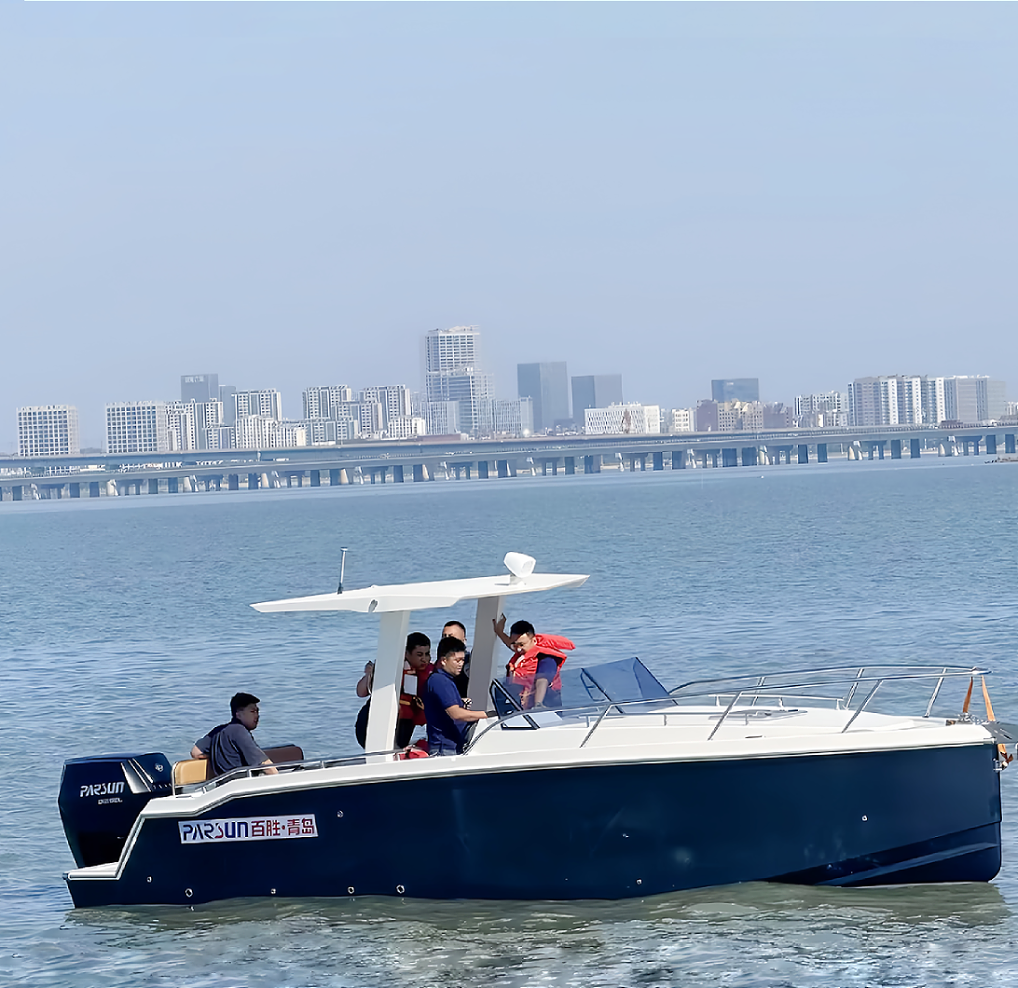

  • 青岛案例.png

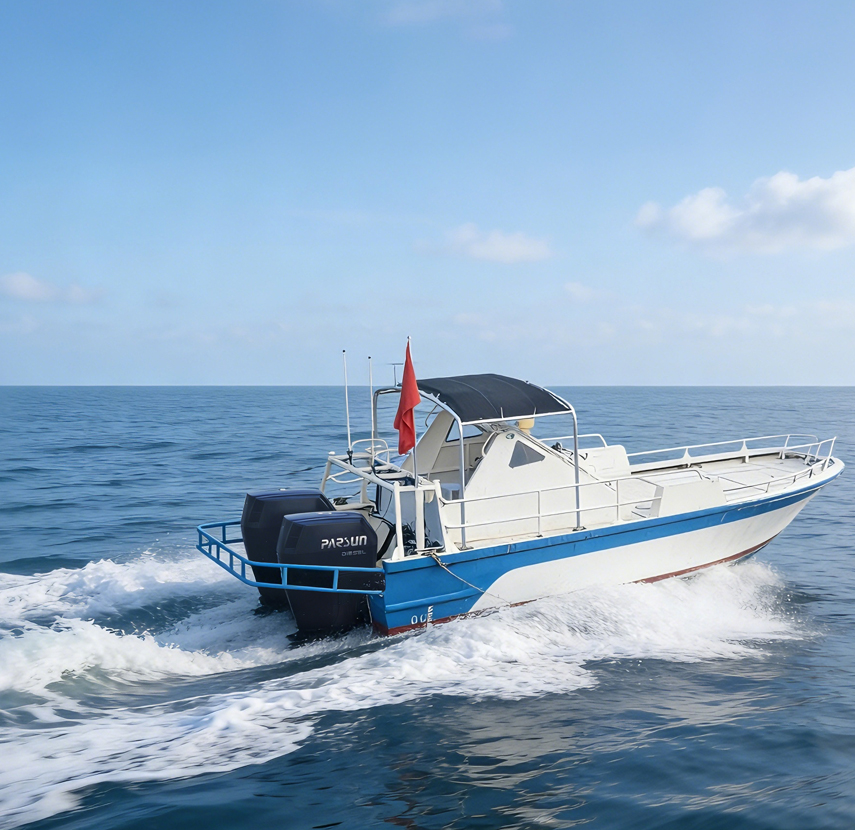

  • 案例03.jpg
  • 案例04.jpg

Performance Bulletins

  • ChatGPT Image 2026年7月24日 10_12_07.png
  • 青岛案例.png
  • 案例03.jpg
  • 案例04.jpg
    • Boat Information
      Qingdao-B
    • Outboard Engine
      Diesel 200

    Learn More

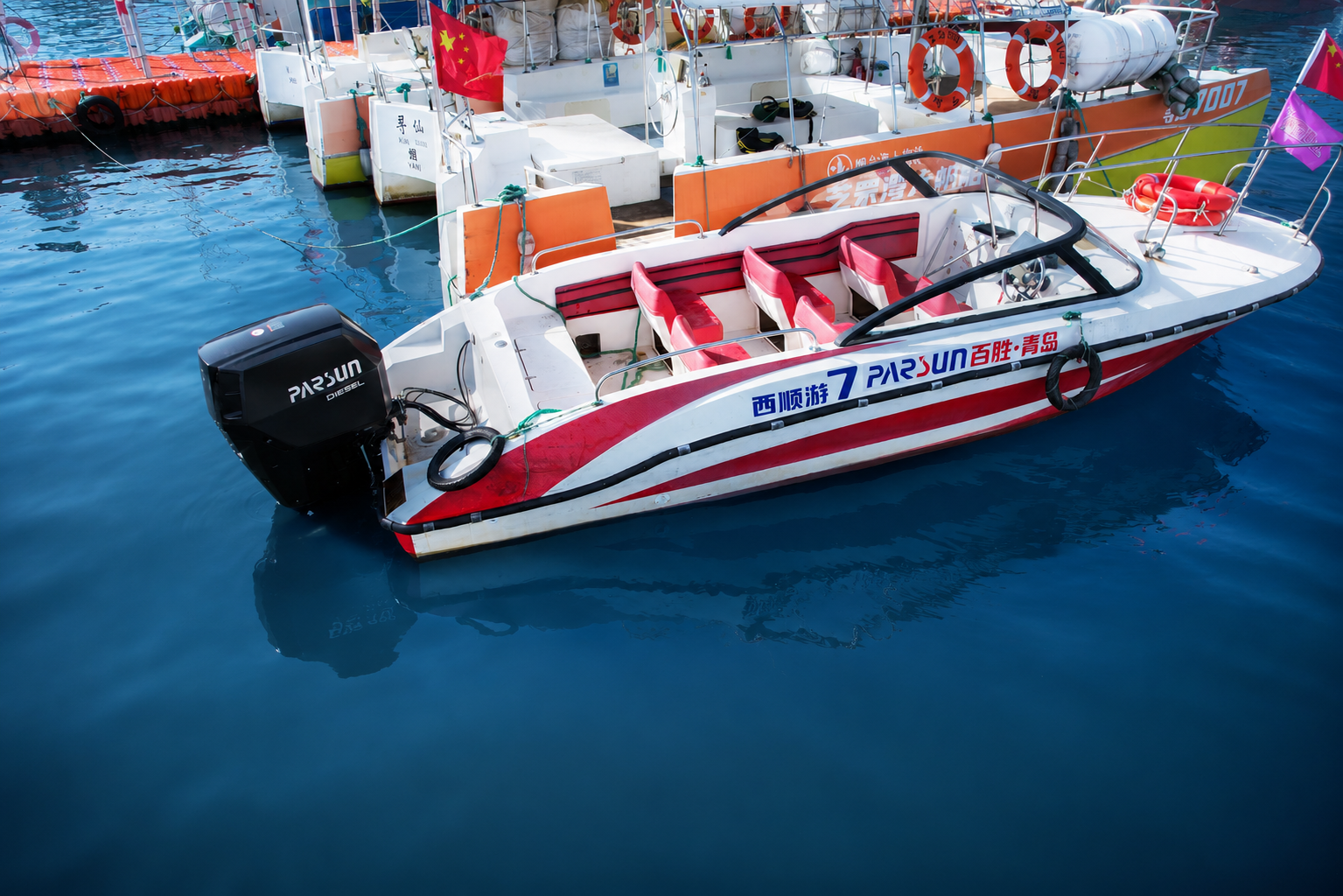

    ChatGPT Image 2026年7月24日 10_12_07.png

    Boat Information

    Engine RPM vs Speed & Fuel Consumption

    ProjectQingdao Boat B
    Length (m)7.3
    Breadth (m)2.45
    Weight (t)2
    Molded depth (m)1.03
    Draft (m)
    propeller clearance
    Propeller size17 in
    Rotation speed (rpm)4000
    Speed (knots)34.3


    • Boat Information
      Qingdao-A
    • Outboard Engine
      Diesel 200

    Learn More

    Boat Information

    ProjectQingdao Boat A
    Length (m)7.5
    Breadth (m)2.5
    Weight (t)2.2
    Molded depth (m)
    Draft (m)
    propeller clearance
    Propeller size17 in
    Rotation speed (rpm)4000
    Speed (knots)31.5


    Engine RPM vs Speed & Fuel Consumption

    • Boat Information
      Beihai
    • Outboard Engine
      Diesel 200

    Learn More

    Boat Information

    ProjectBeihai Boat A
    Length (m)11.16
    Breadth (m)3
    Weight (t)
    Molded depth (m)1.492
    Draft (m)0.6
    propeller clearance0.5
    Propeller size17 in
    Rotation speed (rpm)4000
    Speed (knots)33


    Engine RPM vs Speed & Fuel Consumption

    • Boat Information

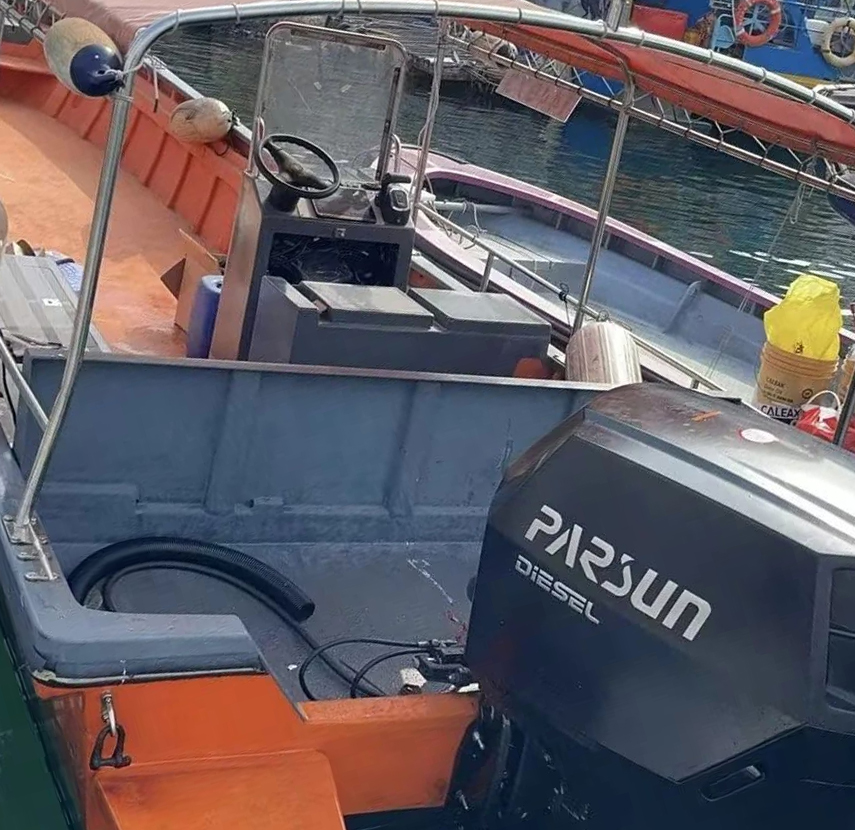

      Hong Kong
    • Outboard Engine
      Diesel 200

    Learn More

    Boat Information

    ProjectHong Kong Boat A
    Length (m)9.75
    Breadth (m)3
    Weight (t)4
    Molded depth (m)
    Draft (m)
    propeller clearance
    Propeller size17 in
    Rotation speed (rpm)4000
    Speed (knots)32


    Engine RPM vs Speed & Fuel Consumption

Specification

Models
  • D200
  • Max. Output Power(HP/Kw)
  • Transom Height(in.)
  • Engine Type
  • Displacement(cc)
  • Bore*Stroke(mm)
  • Ignition System
  • Fuel Injection System
  • Max. RPM Range(r/min)
  • Idling RPM Range(r/min)
  • Steering System
  • Starting System
  • Gear Shift
  • Gear Ratio
  • Trim and Tilt System
  • Max. Fuel Consumption(L)
  • Engine Oil Capacity(L)
  • Belt box oil Capacity(cc)
  • Gear Oil Capacity(cc)
  • Alternator Output
  • Propeller Options(in.)
  • Weight(KG)
  • Recommended type of diesel
  • Certificate
  • b3_cust_img12.png
    • Max. Output Power(HP/Kw)
      200HP/147kW
    • Transom Height(in.)
      25/30/35
    • Engine Type
      L4 diesel, WGT turbocharged, intercooler, closed cooling circuit, heat exchanger / raw waterL4 diesel, WGT turbocharged, intercooler, closed cooling circuit, heat exchanger / raw water
    • Displacement(cc)
      1996
    • Bore*Stroke(mm)
      83.0 X 92.0
    • Ignition System
      Compression ignition
    • Fuel Injection System
      Common rail direct injection
    • Max. RPM Range(r/min)
      4000
    • Idling RPM Range(r/min)
      800
    • Steering System
      hydraulic steering/remote control
    • Starting System
      Electric
    • Gear Shift
      F-N-R
    • Gear Ratio
      high-speed：1.64:1 high-thrust：2.36:1
    • Trim and Tilt System
      Power trim & tilt
    • Max. Fuel Consumption(L)
      43
    • Engine Oil Capacity(L)
      6
    • Belt box oil Capacity(cc)
      1200
    • Gear Oil Capacity(cc)
      Upper unit：2000 Lower unit：1480(CW) / 1328(CCW)
    • Alternator Output
      12V，120A
    • Propeller Options(in.)
      3-161/4”×17"
    • Weight(KG)
      ≈370
    • Recommended type of diesel
      0#/ULSD/EN590
    • Certificate
      CE/CCS/EPA

Explore All


Showcase

China
Showcase China
Showcase China

Want to Learn More
Click Here to Know b2_cta_parsun_logo1.svg

Boat Information

BOAT NAME
Boat Length Boat Length
Width Boat Length
Boat Net weight Boat Length
Maximum Fuel Capacity Boat Length
Test Weight Boat Length
Diesel 200
Maximum Output Power Boat Length
Engine Type Boat Length
Displacement Boat Length
Net Weight Boat Length
Gear Ratio Boat Length
Outboard Motor Mounting Position
Mounting Hole Position Boat Length
Mounting Hole Position
Series Boat Length
Diameter × Pitch Boat Length
Material Boat Length
Test Conditions
Number of Persons Boat Length
Air / Water Temperature Boat Length
Sea Level Boat Length
Wind Speed Boat Length

Engine RPM vs Speed & Fuel Consumption

Engine Speed (RPM) Boat Speed (km/h) Fuel Consumption (L/h) Fuel Efficiency (km/L)
2000 12 10 10
2500 15 17 17
3000 22 23 23
3500 28 34 34
3700 30 40 40
4000 31.5 40.8 40.8
